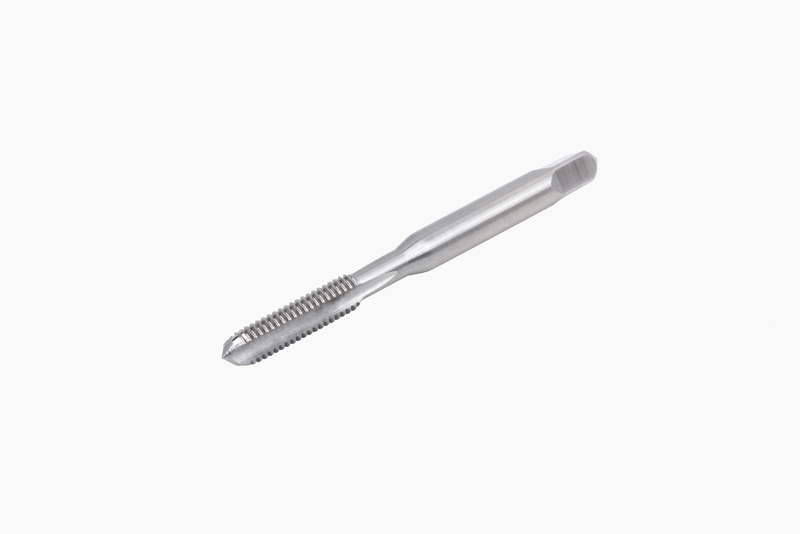

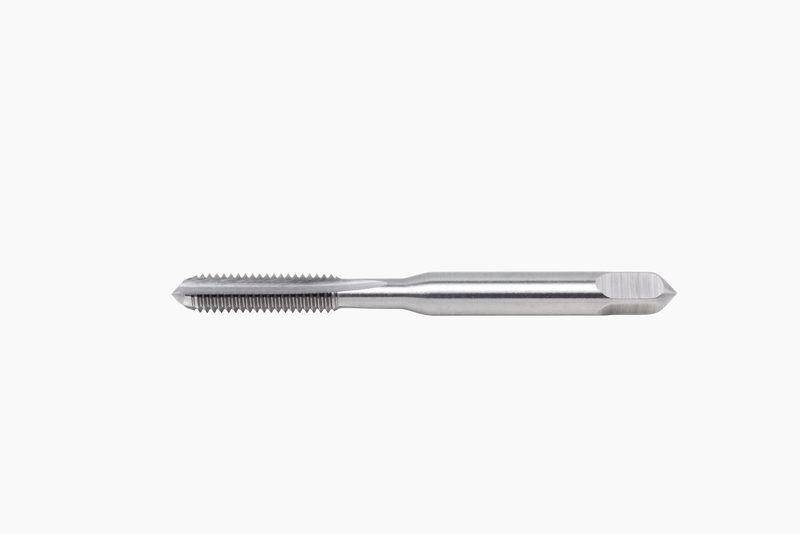

E559UNC10X24NO3
E559UNC10X24NO3
E559UNC10X24NO3

E559UNC10X24NO3

UGC DOR8522484
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.36 CAD - $8.36 CAD
$8.36 CAD
$8.36 CAD - $8.36 CAD
$8.36 CAD

Vendu en lots de : 1

Filetage UNC 0,19 pouce - 24 filets par pouce, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559UNC10X24NO3
GradeLumineux
Product Number8522484
Product FamilyE559NO3(UNC)
Dimensions
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)25.0 mm
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)N°10
Thread Diameter — mm (TD)4.826 mm
Thread Form (THFT)UNC - Unifié grossier
Threads per Inch (TPI)24.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522484
EAN3603607151655
File Type Download
E559UNC10X24NO3 — Line Drawing PDF Download
