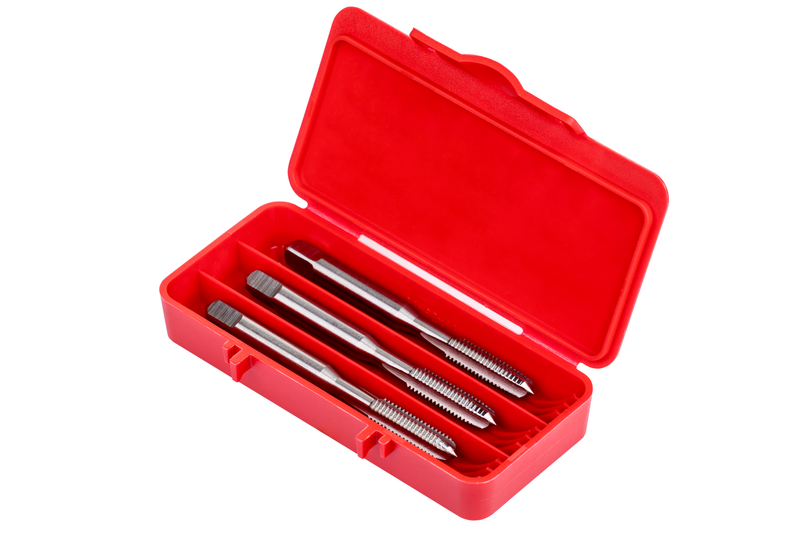

E559UNC1/4NO6
E559UNC1/4NO6

E559UNC1/4NO6

UGC DOR8522490
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.86 CAD - $23.86 CAD
$23.86 CAD
$23.86 CAD - $23.86 CAD
$23.86 CAD

Vendu en lots de : 1

Taille du filetage UNC 0,25 pouce - 20 TPI, avec une classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559UNC1/4NO6
GradeLumineux
Product Number8522490
Product FamilyE559NO6(UNC)
Dimensions
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)30.0 mm
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)CNA - Coarse Non Amalgamed
Threads per Inch (TPI)20.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522490
EAN3603607151716
File Type Download
E559UNC1/4NO6 — Line Drawing PDF Download
