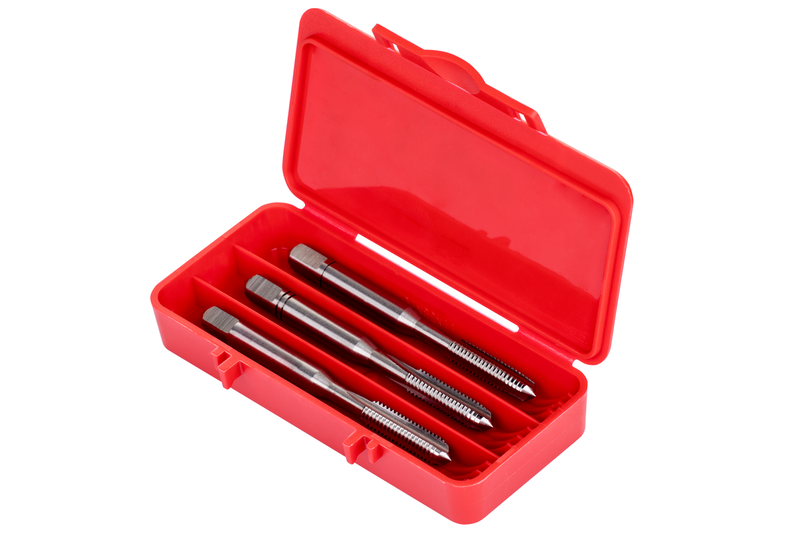

E559UNC1/4NO8
E559UNC1/4NO8

E559UNC1/4NO8

UGC DOR8522495
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.86 CAD - $23.86 CAD
$23.86 CAD
$23.86 CAD - $23.86 CAD
$23.86 CAD

Vendu en lots de : 1

Filetage UNC 0,25 pouce - 20 TPI, avec une tolérance de filetage de classe 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559UNC1/4NO8
GradeLumineux
Product Number8522495
Product FamilyE559NO8(SNC)
Dimensions
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)30.0 mm
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)UNC - Maillage unifié
Threads per Inch (TPI)20.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522495
EAN3603607151761
File Type Download
E559UNC1/4NO8 — Line Drawing PDF Download
