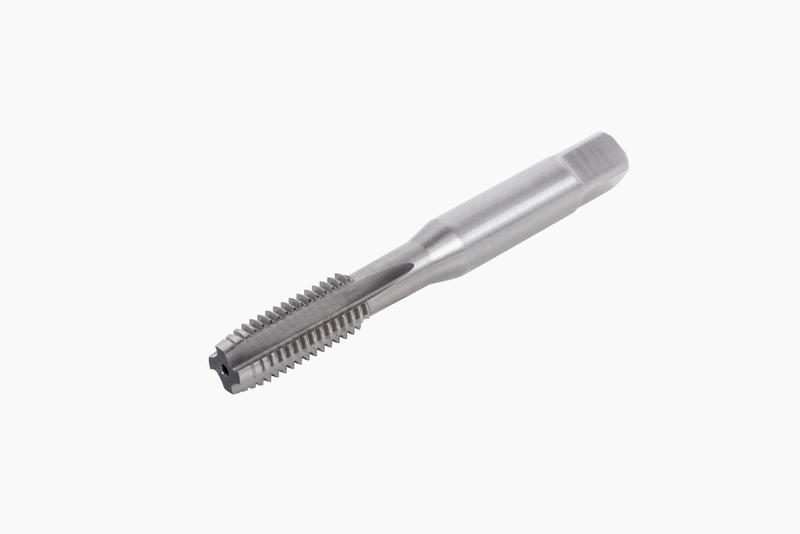

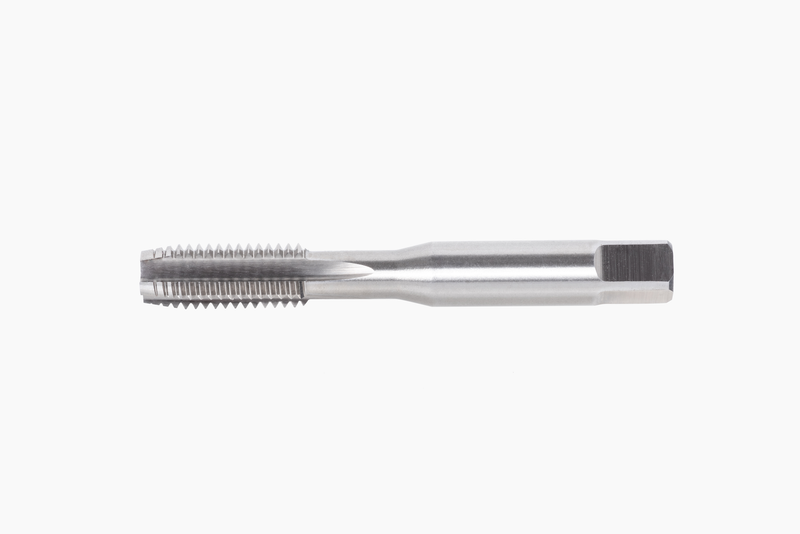

E559UNF3/8NON2
E559UNF3/8NON2
E559UNF3/8NON2

E559UNF3/8NON2

UGC DOR8522507
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.21 CAD - $13.21 CAD
$13.21 CAD
$13.21 CAD - $13.21 CAD
$13.21 CAD

Vendu en lots de : 1

Filetage UNF 0,375 pouce - 24 filets par pouce, avec une classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559UNF3/8NO2
GradeLumineux
Product Number8522507
Product FamilyE559NO2(UNF)
Dimensions
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)39.0 mm
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — mm (TD)9.525 mm
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)24.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522507
EAN3603607151884
File Type Download
E559UNF3/8NON2 — Line Drawing PDF Download
