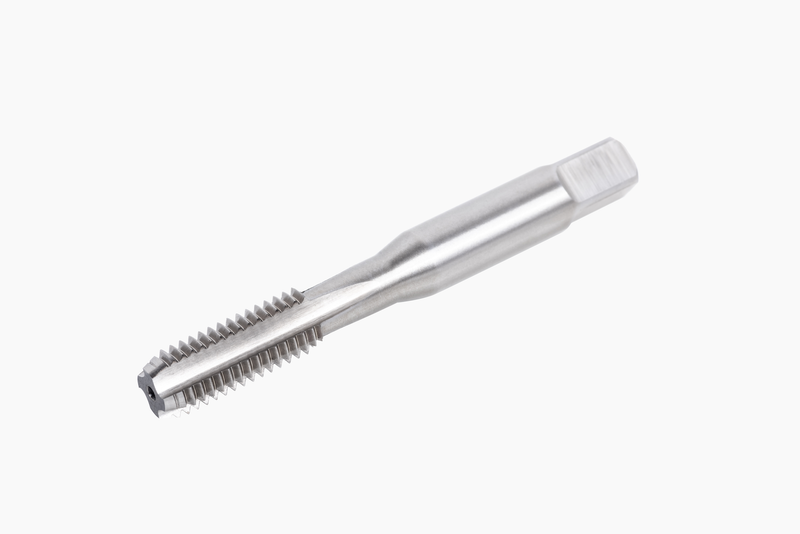

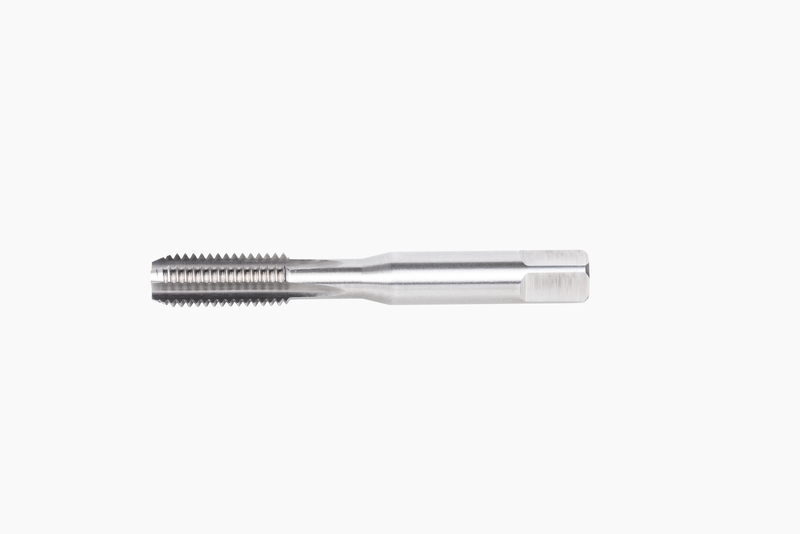

E559UNF5/16NO3
E559UNF5/16NO3
E559UNF5/16NO3

E559UNF5/16NO3

UGC DOR8522511
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.79 CAD - $10.79 CAD
$10.79 CAD
$10.79 CAD - $10.79 CAD
$10.79 CAD

Vendu en lots de : 1

Taille du filetage UNF 0,313 pouce - 24 TPI, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559UNF5/16NO3
GradeLumineux
Product Number8522511
Product FamilyE559NO3(NON)
Dimensions
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)35.0 mm
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — mm (TD)7.938 mm
Thread Form (THFT)UNF - Amende unifiée
Threads per Inch (TPI)24.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522511
EAN3603607151921
File Type Download
E559UNF5/16NO3 — Line Drawing PDF Download
