E559UNF1/2NO3
E559UNF1/2NO3
E559UNF1/2NO3

E559UNF1/2NO3

UGC DOR8522513
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.26 CAD - $17.26 CAD
$17.26 CAD
$17.26 CAD - $17.26 CAD
$17.26 CAD

Vendu en lots de : 1

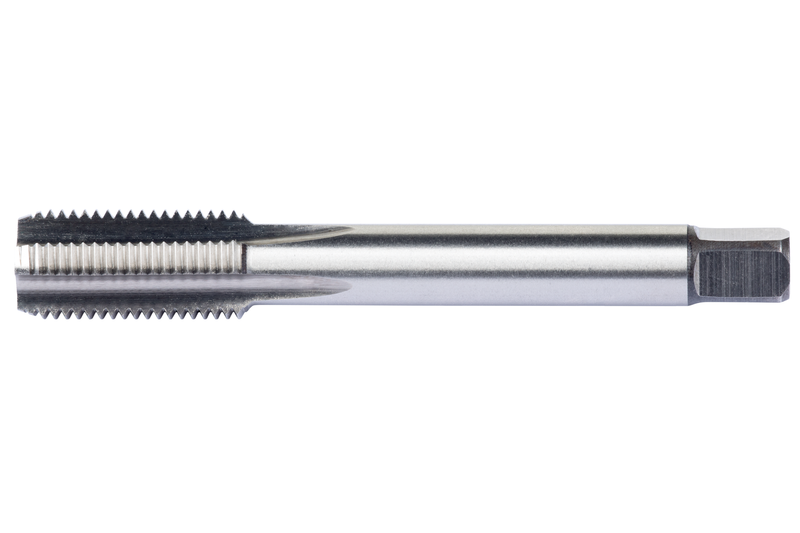

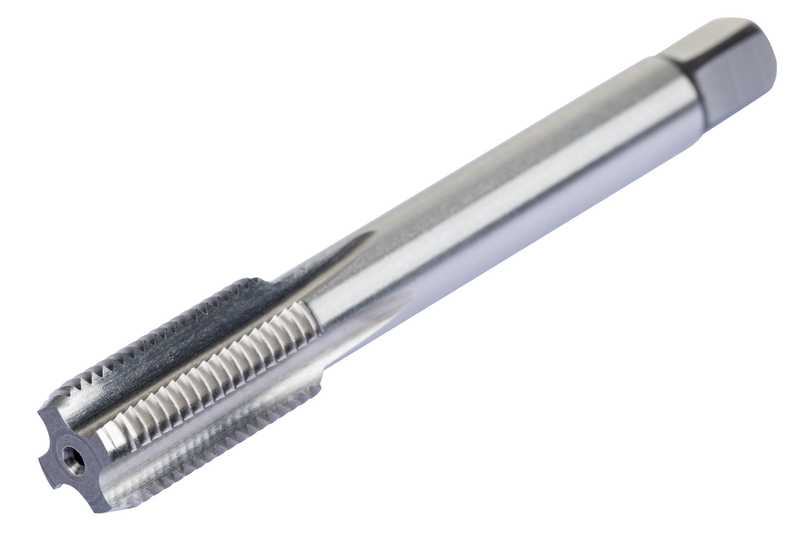

Filetage UNF 0,5 pouce - 20 filets par pouce, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559UNF1/2NO3
GradeLumineux
Product Number8522513
Product FamilyE559NO3(ONU)

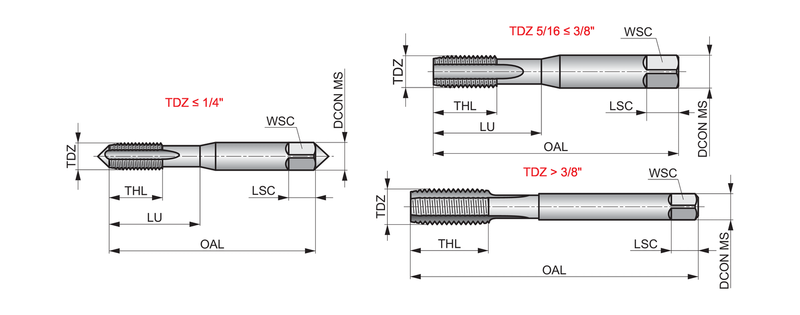

Dimensions
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — mm (TD)12.7 mm
Thread Form (THFT)UNF - Unified Fine
Threads per Inch (TPI)20.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522513
EAN3603607151945
File Type Download
E559UNF1/2NO3 — Line Drawing PDF Download
