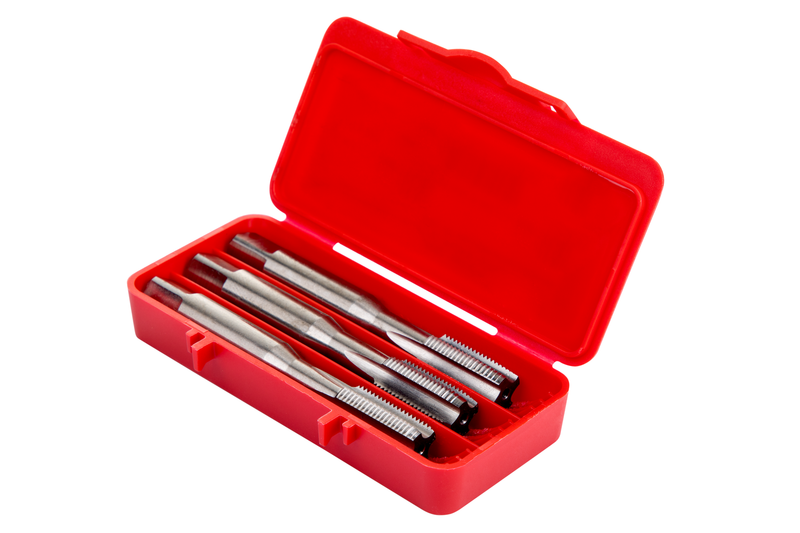

E559UNF5/16NONO6
E559UNF5/16NONO6

E559UNF5/16NONO6

UGC DOR8522516
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.40 CAD - $32.40 CAD
$32.40 CAD
$32.40 CAD - $32.40 CAD
$32.40 CAD

Vendu en lots de : 1

Taille du filetage UNF 0,313 pouce - 24 filets par pouce, avec une classe de tolérance de filetage de 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559UNF5/16NO6
GradeLumineux
Product Number8522516
Product FamilyE559NO6(UNF)
Dimensions
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)35.0 mm
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — mm (TD)7.938 mm
Thread Form (THFT)UNF - Pas fin uniforme
Threads per Inch (TPI)24.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522516
EAN3603607151976
File Type Download
E559UNF5/16NONO6 — Line Drawing PDF Download
