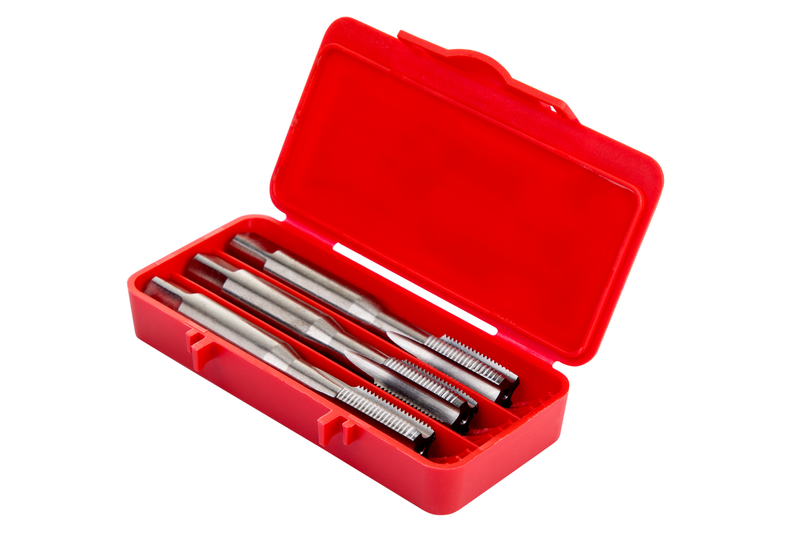

E559UNF3/8NON6
E559UNF3/8NON6

E559UNF3/8NON6

UGC DOR8522517
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.71 CAD - $39.71 CAD
$39.71 CAD
$39.71 CAD - $39.71 CAD
$39.71 CAD

Vendu en lots de : 1

Taille du filetage UNF 0,375 pouce - 24 TPI, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI)E559UNF3/8NON6
Product Name (ISO)E559UNF3/8NO6
GradeLumineux
Product Number8522517
Product FamilyE559NO6(UNF)
Dimensions
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)39.0 mm
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — mm (TD)9.525 mm
Thread Form (THFT)UNF - Filetage fin unifié
Threads per Inch (TPI)24.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522517
EAN3603607151983
File Type Download
E559UNF3/8NON6 — Line Drawing PDF Download
