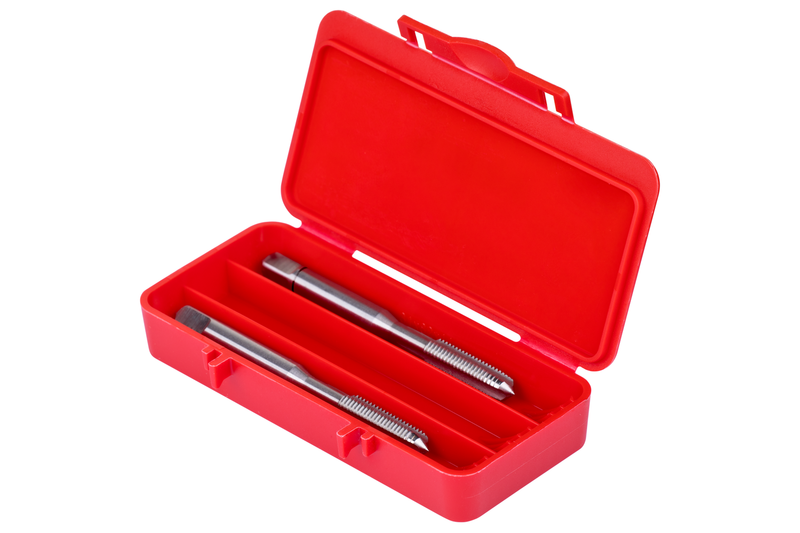

E559UNF10X32NO9
E559UNF10X32NO9

E559UNF10X32NO9

UGC DOR8522519
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.00 CAD - $20.00 CAD
$20.00 CAD
$20.00 CAD - $20.00 CAD
$20.00 CAD

Vendu en lots de : 1

Taille du filetage UNF 0,19 pouce - 32 TPI, avec une classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559UNF10X32NO9
GradeLumineux
Product Number8522519
Product FamilyE559NO9(UNF)
Dimensions
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)24.0 mm
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)N°10
Thread Diameter — mm (TD)4.826 mm
Thread Form (THFT)UNF - Filetage fin unifié
Threads per Inch (TPI)32.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522519
EAN3603607152003
File Type Download
E559UNF10X32NO9 — Line Drawing PDF Download
