25E3R032M12-SRN10-C
25E3R032M12-SRN10-C

25E3R032M12-SRN10-C

UGC DOR8547644
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

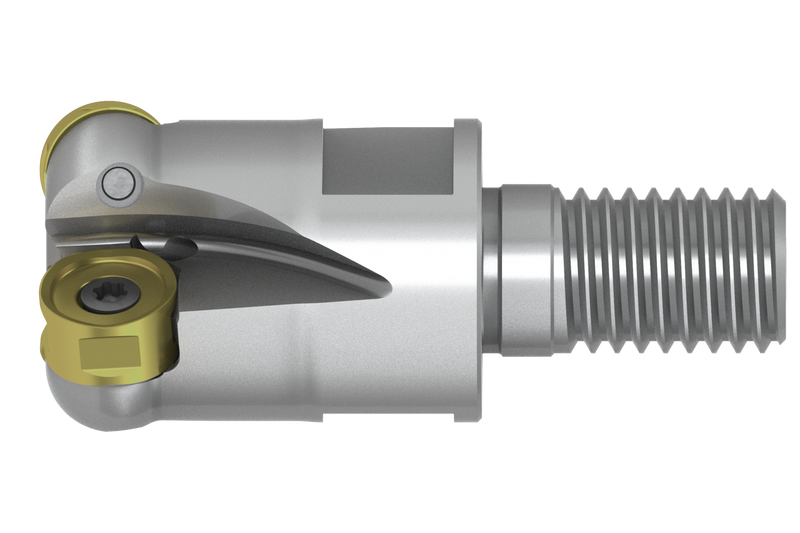

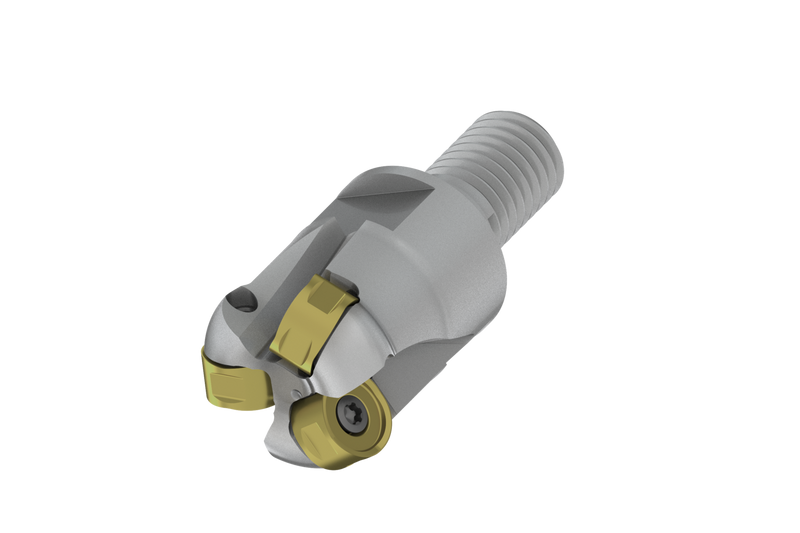

Fraise à copier avec géométrie double négative qui utilise 3 plaquettes RNMU 1004MOT.. double face, diamètre de coupe 25 mm avec queue filetée M12 mm pour porte-outils modulaires standard, longueur de dépassement 32 mm, arrosage central pour le surfaçage, la copie et le rainurage progressif avec une profondeur de coupe maximale de 4,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25E3R032M12-SRN10-C
Product Number8547644
Product FamilySRN10
Insert Geometry
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.591"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Functional Length — in (LF)1.26"
Functional Length — mm (LF)32.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSRN10
ShankRaccord fileté
Reference Numbers
EDP Number8547644
EAN3603604262019
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
25E3R032M12-SRN10-C — 3D Model STP Download
25E3R032M12-SRN10-C — 2D Model DXF Download
25E3R032M12-SRN10-C — Line Drawing PDF Download
