32E4R042M16-SRN10-C
32E4R042M16-SRN10-C

32E4R042M16-SRN10-C

UGC DOR8547647
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$469.00 CAD - $469.00 CAD
$469.00 CAD
$469.00 CAD - $469.00 CAD
$469.00 CAD

Vendu en lots de : 1

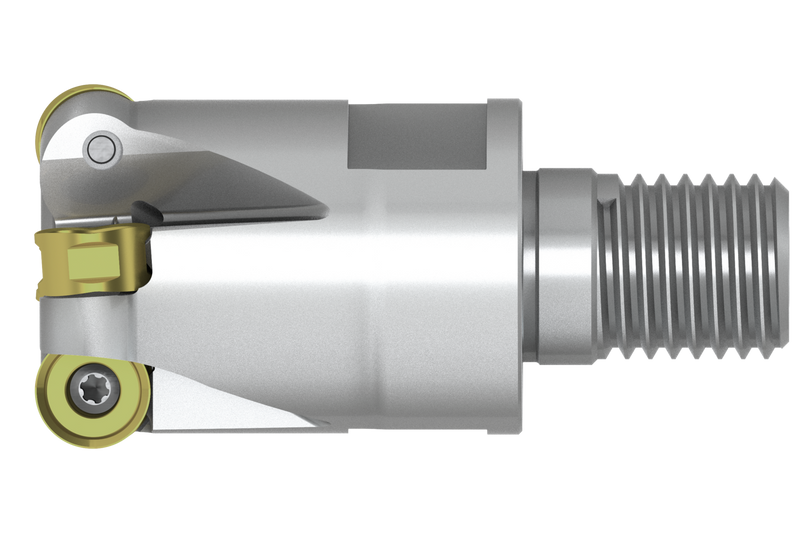

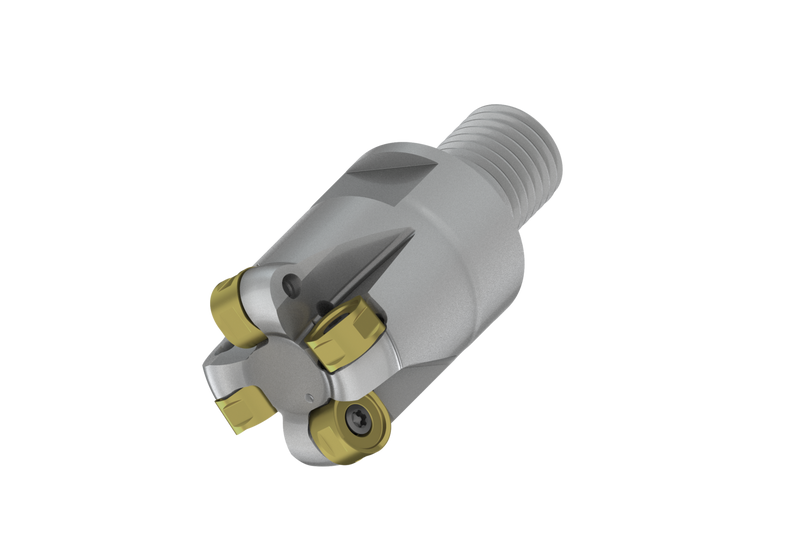

Fraise à surfacer-copier avec géométrie double négative utilisant 4 plaquettes double face RNMU 1004MOT.., diamètre de coupe 32 mm avec queue filetée M16 mm pour porte-outils modulaires standard, longueur de dépassement 42 mm, arrosage central pour le surfaçage, le copiage et le fraisage progressif en plongée avec une profondeur de coupe maximale de 4,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E4R042M16-SRN10-C
Product Number8547647
Product FamilySRN10
Insert Geometry
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.866"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — in (LF)1.654"
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSRN10
ShankRaccord fileté
Reference Numbers
EDP Number8547647
EAN3603604262040
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
32E4R042M16-SRN10-C — 3D Model STP Download
32E4R042M16-SRN10-C — 2D Model DXF Download
32E4R042M16-SRN10-C — Line Drawing PDF Download
