25E3R060A25-SRN10-C
25E3R060A25-SRN10-C

25E3R060A25-SRN10-C

UGC DOR8547648
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$464.00 CAD - $464.00 CAD
$464.00 CAD
$464.00 CAD - $464.00 CAD
$464.00 CAD

Vendu en lots de : 1

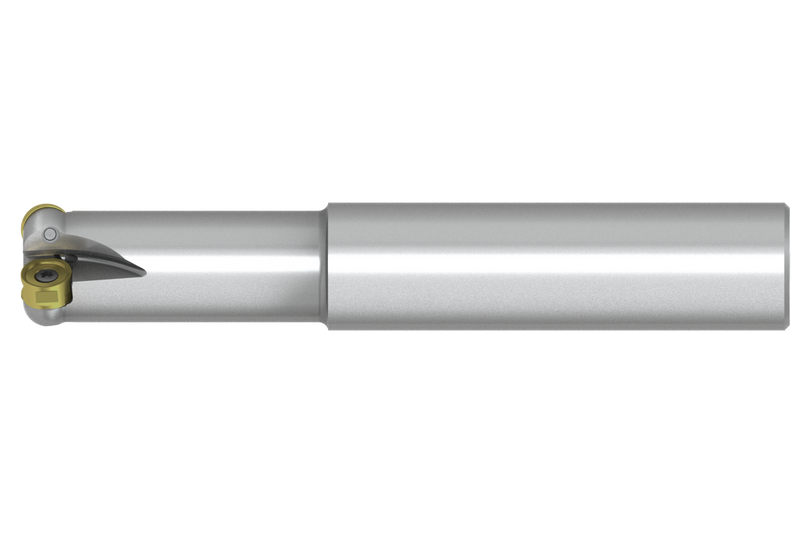

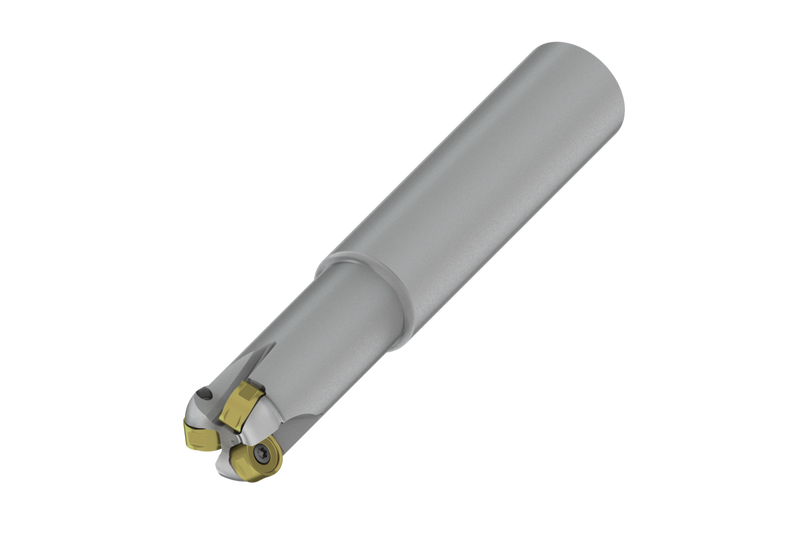

Fraise à copier deux coupes négatives utilisant 3 plaquettes double face RNMU 1004MOT.., diamètre de coupe 25mm avec queue cylindrique de 25mm selon DIN 1835A, longueur utile 60mm et longueur totale 150mm, arrosage central pour le surfaçage, le copiage et le fraisage en plongée progressive avec une profondeur de coupe maximale de 4,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25E3R060A25-SRN10-C
Product Number8547648
Product FamilySRN10
Insert Geometry
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm

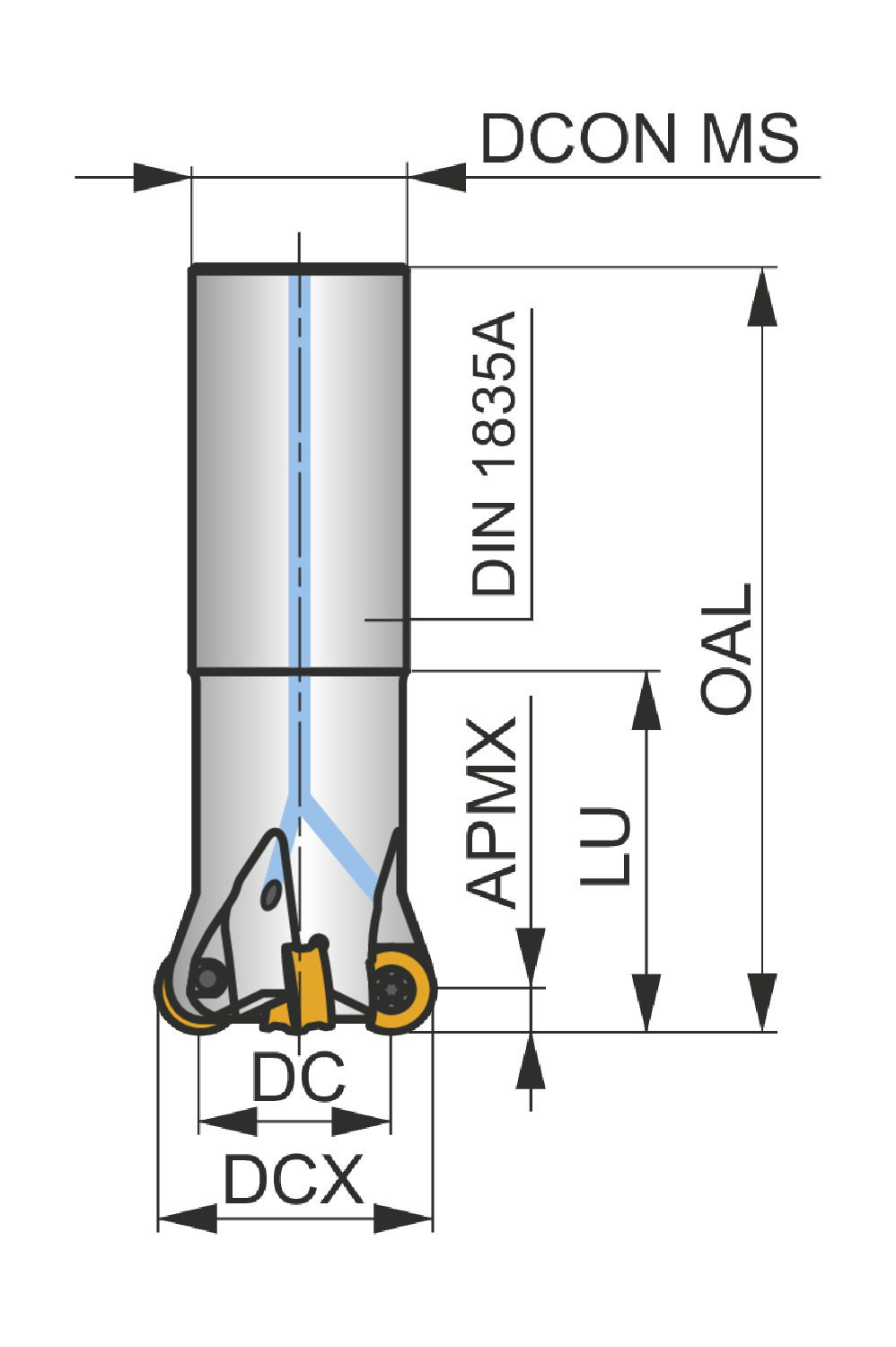

Dimensions
Cutting Diameter — in (DC)0.591"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — in (LU)2.362"
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSRN10
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number8547648
EAN3603604262057
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
25E3R060A25-SRN10-C — 3D Model STP Download
25E3R060A25-SRN10-C — 2D Model DXF Download
25E3R060A25-SRN10-C — Line Drawing PDF Download
