40A05R-SMORN10-C
40A05R-SMORN10-C

40A05R-SMORN10-C

UGC DOR8547710
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$555.00 CAD - $555.00 CAD
$555.00 CAD
$555.00 CAD - $555.00 CAD
$555.00 CAD

Vendu en lots de : 1

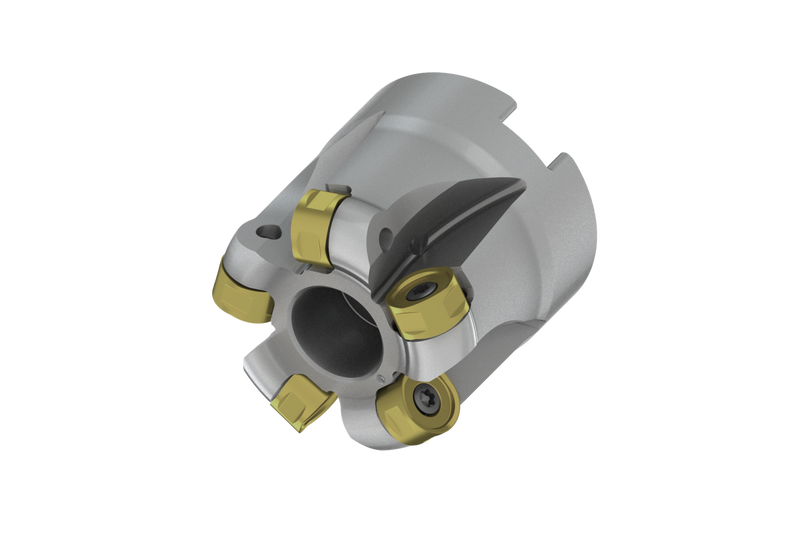

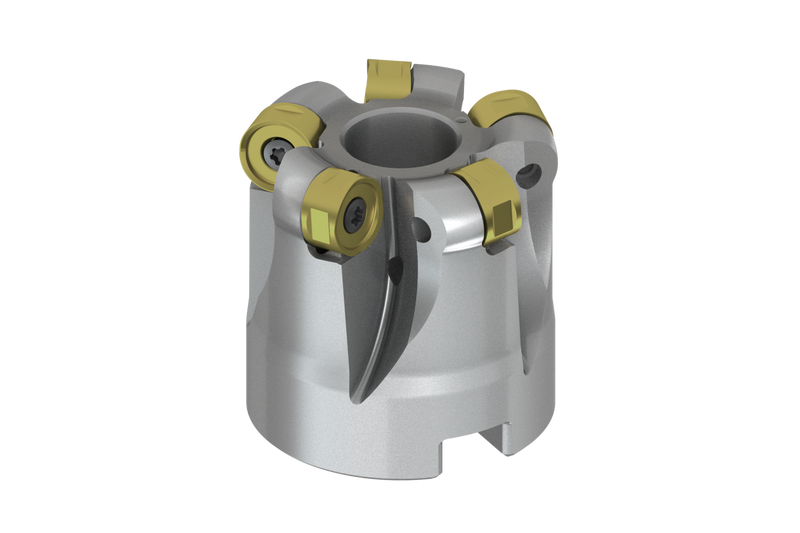

Fraise à surfacer-à copier avec géométrie double négative qui utilise 5 plaquettes RNMU 1004MOT.. double face, diamètre de coupe 40mm avec alésage de connexion 16mm selon DIN 8030-A, longueur de dépassement 40mm, arrosage central pour le surfaçage, le copiage et le fraisage progressif en plongée avec une profondeur de coupe maximale de 4.5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A05R-SMORN10-C
Product Number8547710
Product FamilySRN10
Insert Geometry
Insert DesignRNMU10
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm

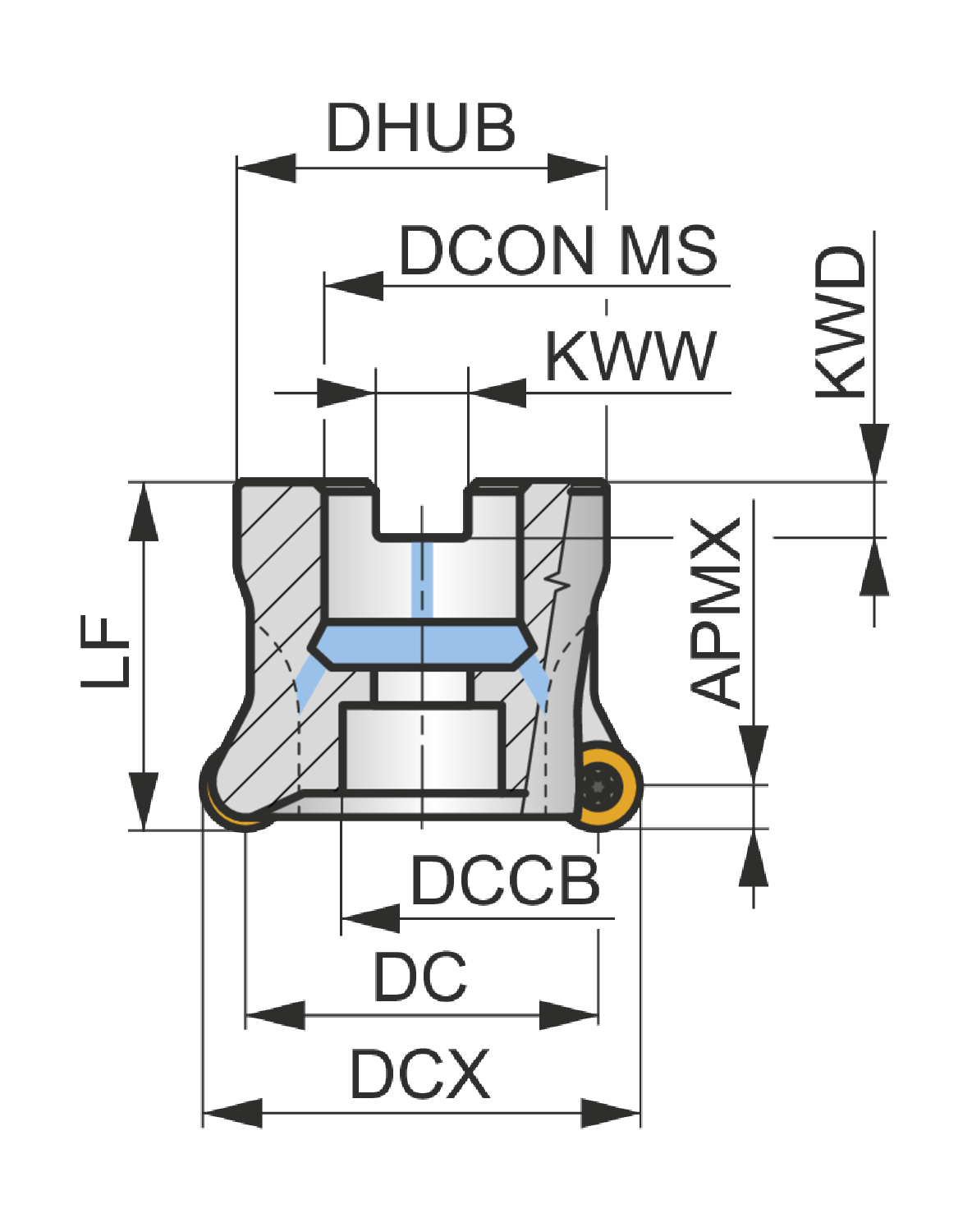

Dimensions
Cutting Diameter — in (DC)1.181"
Cutting Diameter — mm (DC)30.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSRN10
ShankFraise à surfacer-dresser DIN 8030 A
Reference Numbers
EDP Number8547710
EAN3603604262071
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
40A05R-SMORN10-C — 3D Model STP Download
40A05R-SMORN10-C — 2D Model DXF Download
40A05R-SMORN10-C — Line Drawing PDF Download
