50A06R-SMORN10-C
50A06R-SMORN10-C

50A06R-SMORN10-C

UGC DOR8547711
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$601.00 CAD - $601.00 CAD
$601.00 CAD
$601.00 CAD - $601.00 CAD
$601.00 CAD

Vendu en lots de : 1

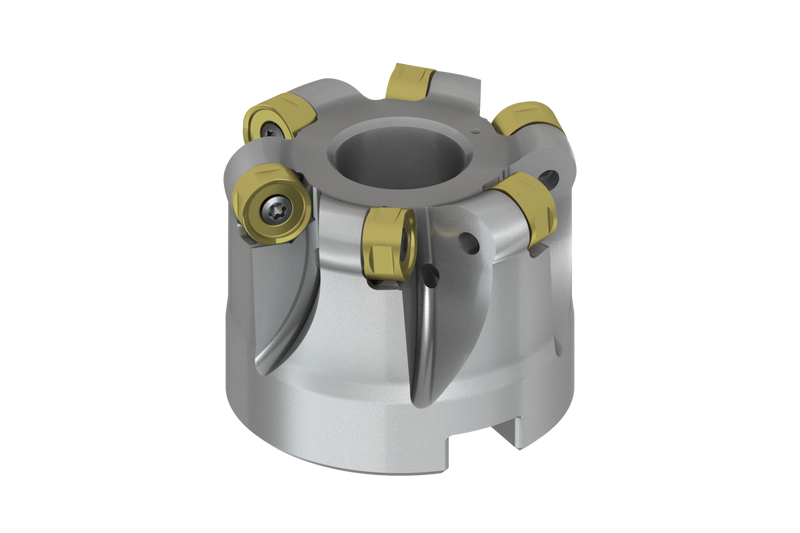

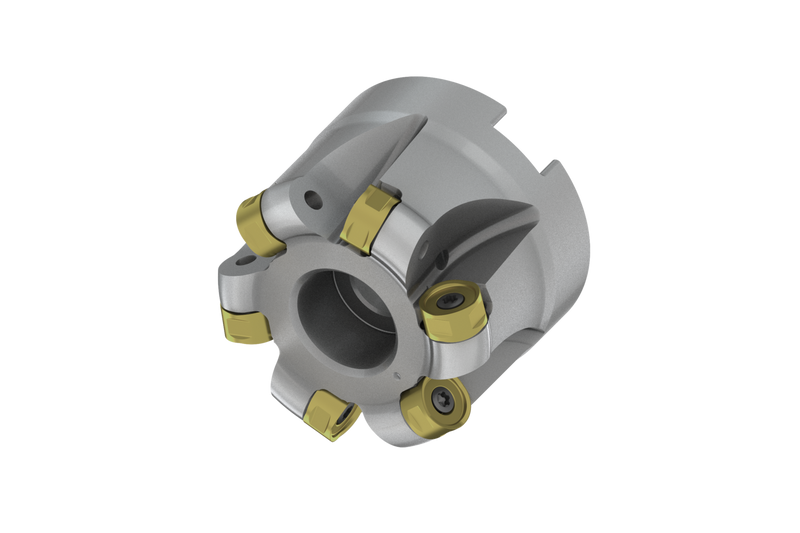

Fraise à surfacer à copier de géométrie double négative utilisant 6 plaquettes double face RNMU 1004MOT.., diamètre de coupe 50mm avec alésage de connexion de 22mm selon DIN 8030-A, longueur de dépassement 40mm, arrosage central pour le surfaçage, le fraisage en copie et le fraisage en plongée progressive avec une profondeur de coupe maximale de 4,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A06R-SMORN10-C
Product Number8547711
Product FamilySRN10
Insert Geometry
Insert DesignRNMU10
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSRN10
ShankFraise à surfacer-planer DIN 8030 A
Reference Numbers
EDP Number8547711
EAN3603604262088
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
50A06R-SMORN10-C — 3D Model STP Download
50A06R-SMORN10-C — 2D Model DXF Download
50A06R-SMORN10-C — Line Drawing PDF Download
