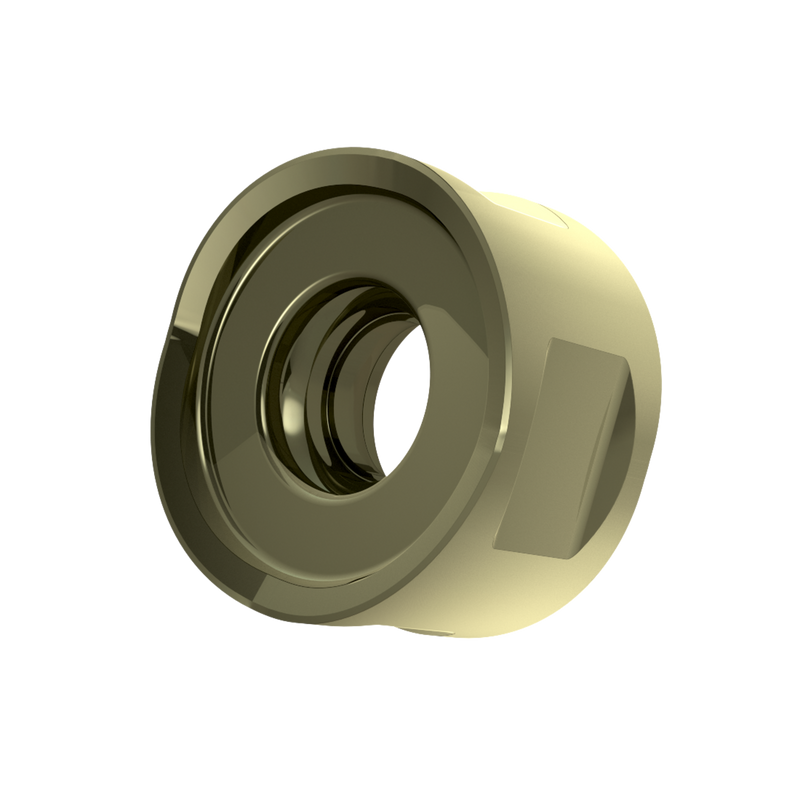

RNMU 1004MOT-MF:M6040

RNMU 1004MOT-MF:M6040

UGC DOR8547777
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.09 CAD - $18.09 CAD
$18.09 CAD
$18.09 CAD - $18.09 CAD
$18.09 CAD

Vendu en lots de : 10

Plaquette de fraisage double face RNMU 1004 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 4,5 mm, avec une précision d'indexage selon la classe de tolérance ISO-M et géométrie MF avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu PVD M6040 dans les plages de nuances ISO P35-P50/M35-M40 et S20-S30 pour l'usinage de l'acier, de l'acier inoxydable et des superalliages avec les fraises à copier SRN10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RNMU 1004MOT-MF:M6040
GradeM6040
Chipbreaker (CBMD)MF
Product Number8547777
Product FamilyRNMU10
Insert Geometry
Insert DesignInfirmière diplômée
Insert Shape Code (SC)R - tour
Inscribed Circle Dia. — in (IC)0.3937"
Inscribed Circle Dia. — mm (IC)10.0 mm
Insert Thickness — in (S)0.1752"
Insert Thickness — mm (S)4.45 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignSRN10
Reference Numbers
EDP Number8547777
EAN3603604262132
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download

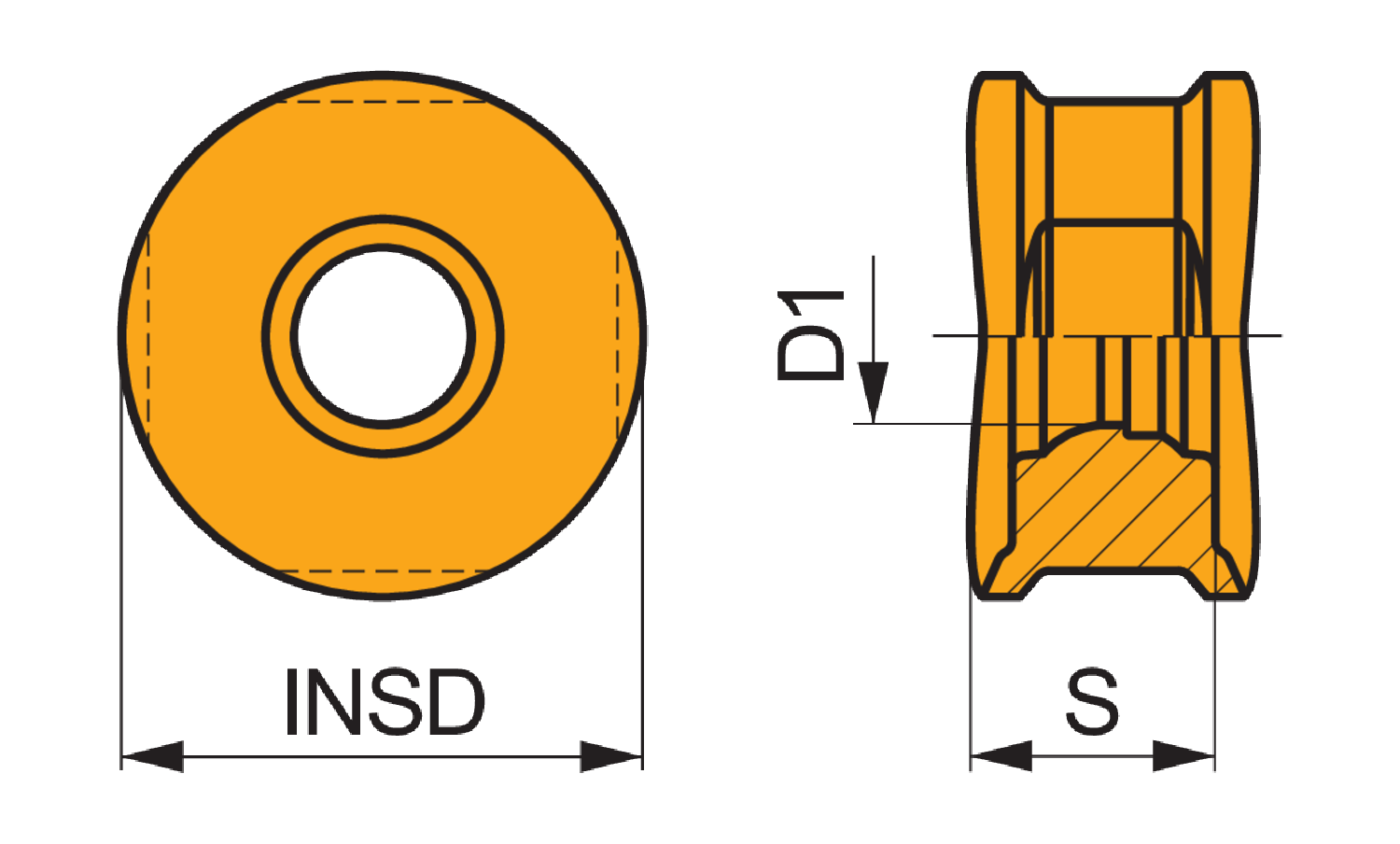

RNMU 1004MOT-MF:M6040 — Line Drawing PDF Download
