80A08R-SMORN12-C
80A08R-SMORN12-C

80A08R-SMORN12-C

UGC DOR8547839
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$801.00 CAD - $801.00 CAD
$801.00 CAD
$801.00 CAD - $801.00 CAD
$801.00 CAD

Vendu en lots de : 1

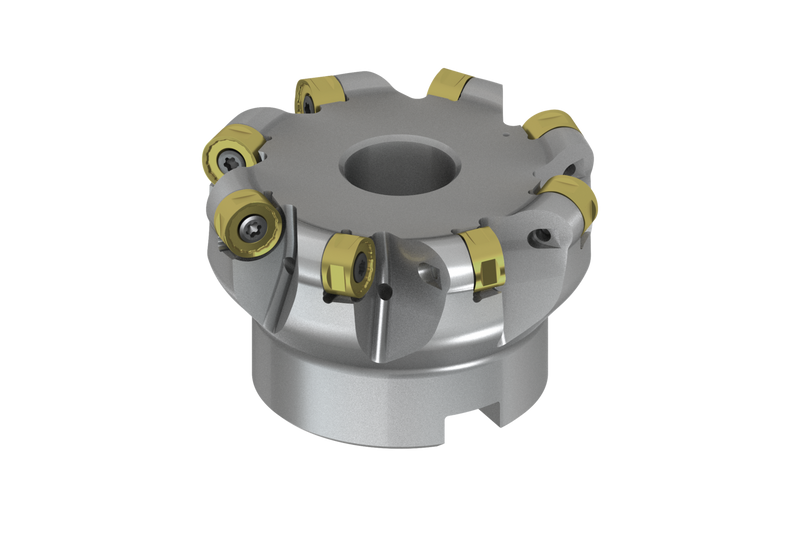

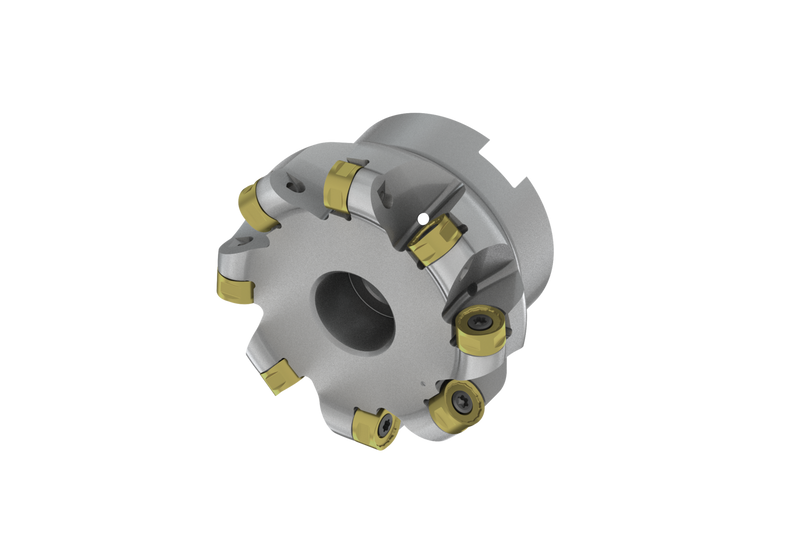

Fraise à copier avec double géométrie négative utilisant 8 plaquettes double face RNMU 1205MOT..., diamètre de coupe de 80 mm avec alésage de connexion de 27 mm selon DIN 8030-A, longueur de dépassement de 50 mm, arrosage central pour le surfaçage, le copiage et le fraisage en plongée progressive avec une profondeur de coupe maximale de 5,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A08R-SMORN12-C
Product Number8547839
Product FamilySRN12
Insert Geometry
Insert DesignRNMU12
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)2.677"
Cutting Diameter — mm (DC)68.0 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSRN12
ShankFraise-scie DIN 8030 A
Reference Numbers
EDP Number8547839
EAN3603604262224
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
80A08R-SMORN12-C — 3D Model STP Download
80A08R-SMORN12-C — 2D Model DXF Download
80A08R-SMORN12-C — Line Drawing PDF Download
