35E3R040M16-SSO12-C
35E3R040M16-SSO12-C
35E3R040M16-SSO12-C

35E3R040M16-SSO12-C

UGC DOR8551766
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$510.00 CAD - $510.00 CAD
$510.00 CAD
$510.00 CAD - $510.00 CAD
$510.00 CAD

Vendu en lots de : 1

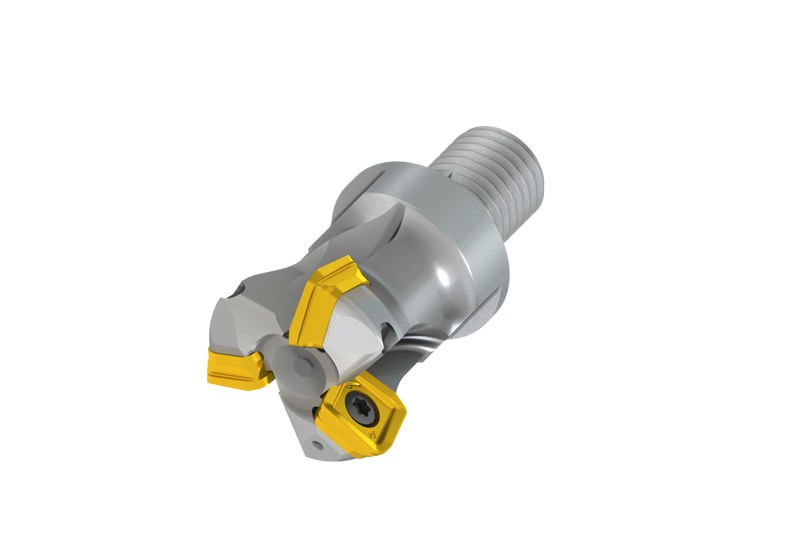

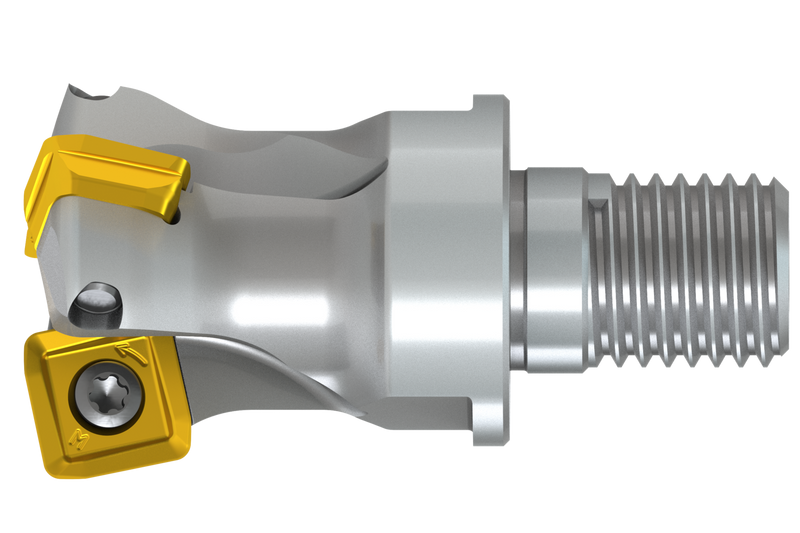

Fraise à grande avance de 12° très polyvalente utilisant des plaquettes SO.. 12 simple face avec APMX de 1,9 mm. Diamètre de coupe de 17,3 mm avec un angle d'attaque de 12° et une queue filetée M16 pour porte-outils modulaires standards, longueur fonctionnelle de 40 mm, arrosage interne et pas différentiel pour le surfaçage, le copiage, l'interpolation hélicoïdale, le fraisage en rampe, le fraisage en plongée et le fraisage progressif en plongée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35E3R040M16-SSO12-C
Product Number8551766
Product FamilySSO12
Insert Geometry
Insert DesignSOHT 12
Depth of Cut Max — mm (APMX)1.9 mm

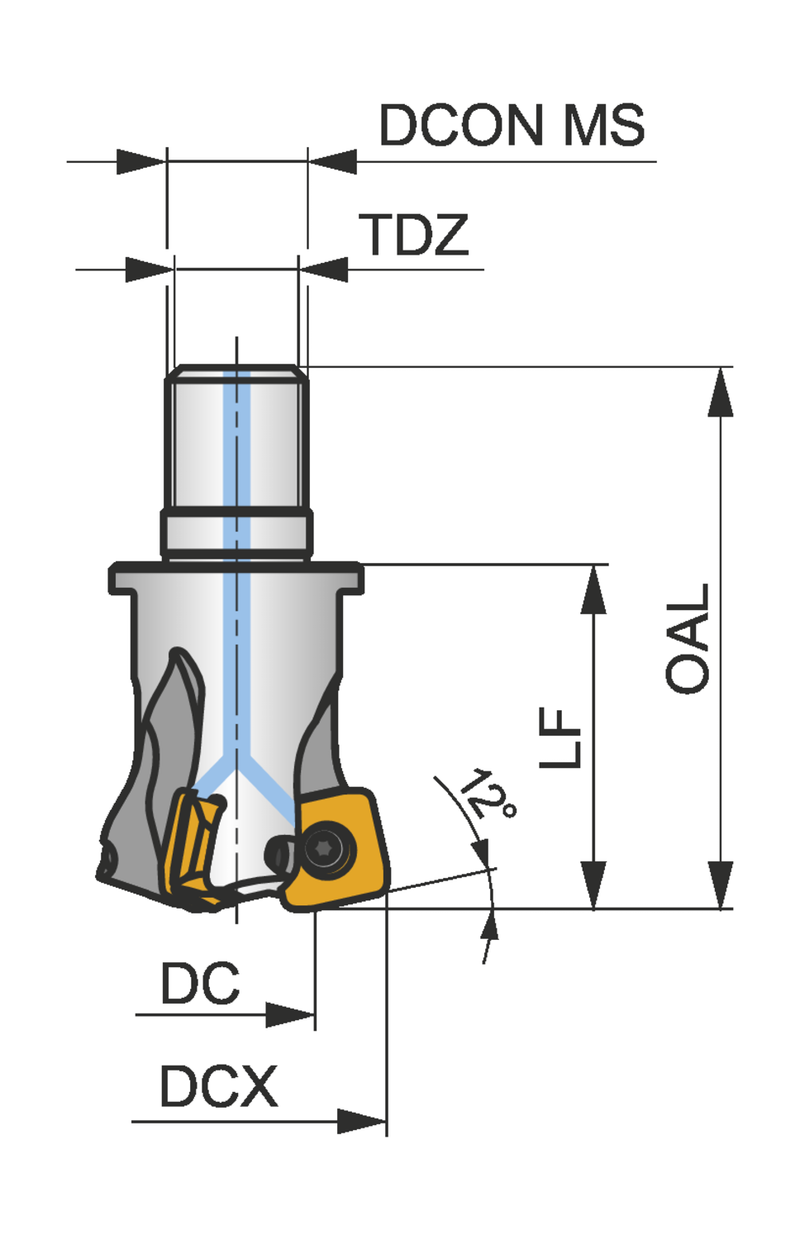

Dimensions
Cutting Diameter — in (DC)0.681"
Cutting Diameter — mm (DC)17.3 mm
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSSO12
ShankRaccord fileté
Through Coolant Yes
Reference Numbers
EDP Number8551766
EAN3603604263191
File Type Download
35E3R040M16-SSO12-C — 3D Model STP Download
35E3R040M16-SSO12-C — 2D Model DXF Download
35E3R040M16-SSO12-C — Line Drawing PDF Download
