42A04R-SMOSO12-C
42A04R-SMOSO12-C
42A04R-SMOSO12-C

42A04R-SMOSO12-C

UGC DOR8551768
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$551.00 CAD - $551.00 CAD
$551.00 CAD
$551.00 CAD - $551.00 CAD
$551.00 CAD

Vendu en lots de : 1

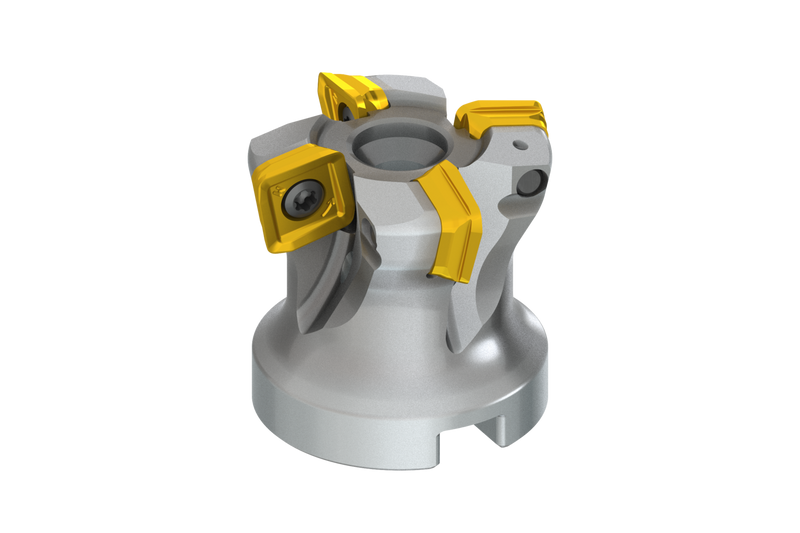

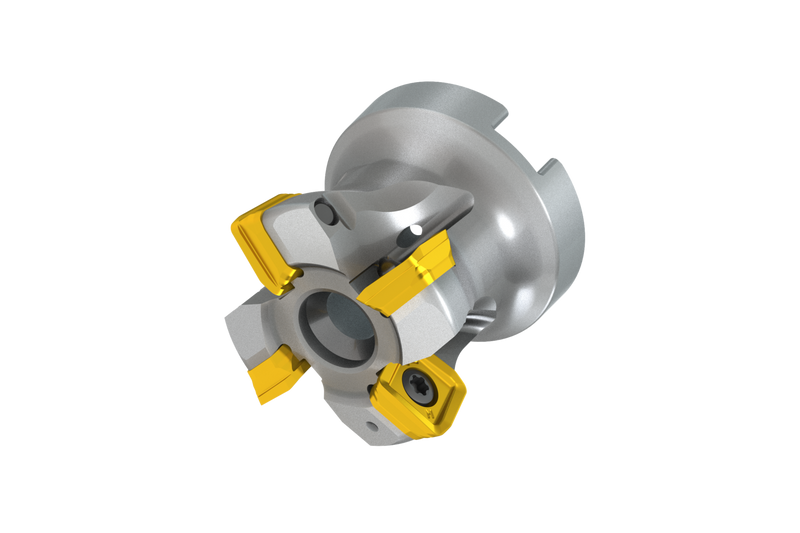

Fraise à grande avance, très polyvalente, de 12°, utilisant des plaquettes simples SO.. de style 12 avec un APMX de 1,9 mm, diamètre de coupe de 24,3 mm avec un angle d'attaque de 12° et un alésage de connexion de 16 mm selon DIN 8030-C, longueur fonctionnelle de 40 mm, arrosage central et pas différentiel pour le surfaçage, le copiage, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)42A04R-SMOSO12-C
Product Number8551768
Product FamilySSO12
Insert Geometry
Insert DesignSOHT 12
Depth of Cut Max — mm (APMX)1.9 mm

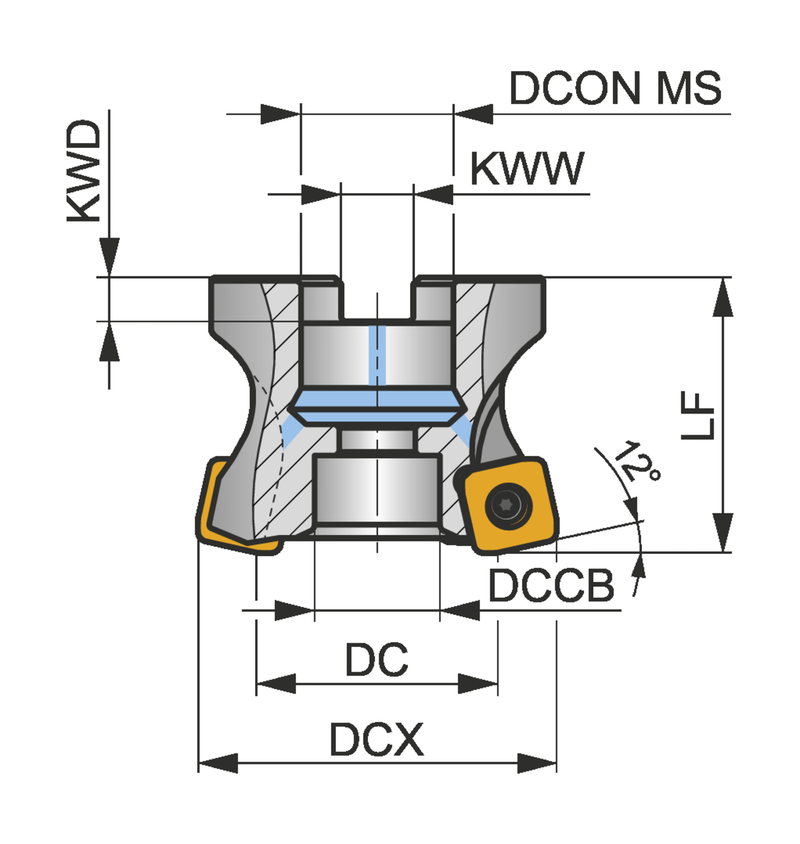

Dimensions
Cutting Diameter — in (DC)0.957"
Cutting Diameter — mm (DC)24.3 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSSO12
ShankFraise cloche DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8551768
EAN3603604263214
File Type Download
42A04R-SMOSO12-C — 3D Model STP Download
42A04R-SMOSO12-C — 2D Model DXF Download
42A04R-SMOSO12-C — Line Drawing PDF Download
