63A06R-SMOSO12-C
63A06R-SMOSO12-C
63A06R-SMOSO12-C

63A06R-SMOSO12-C

UGC DOR8551871
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$821.00 CAD - $821.00 CAD
$821.00 CAD
$821.00 CAD - $821.00 CAD
$821.00 CAD

Vendu en lots de : 1

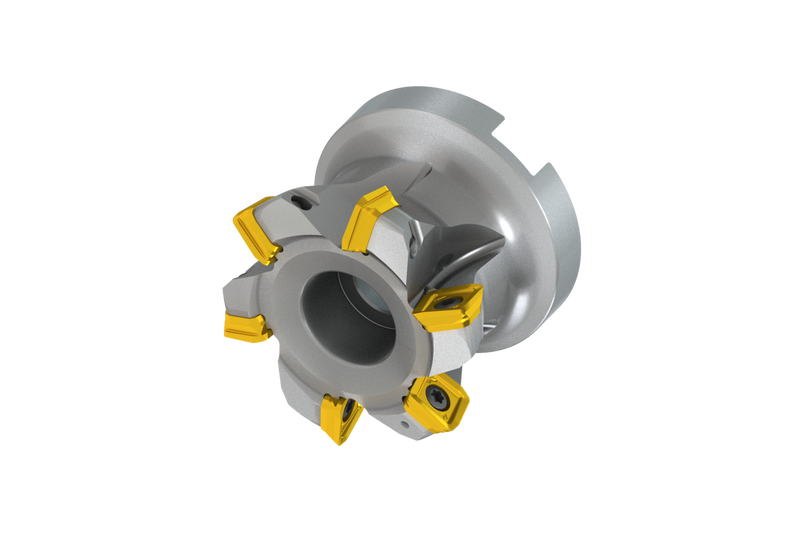

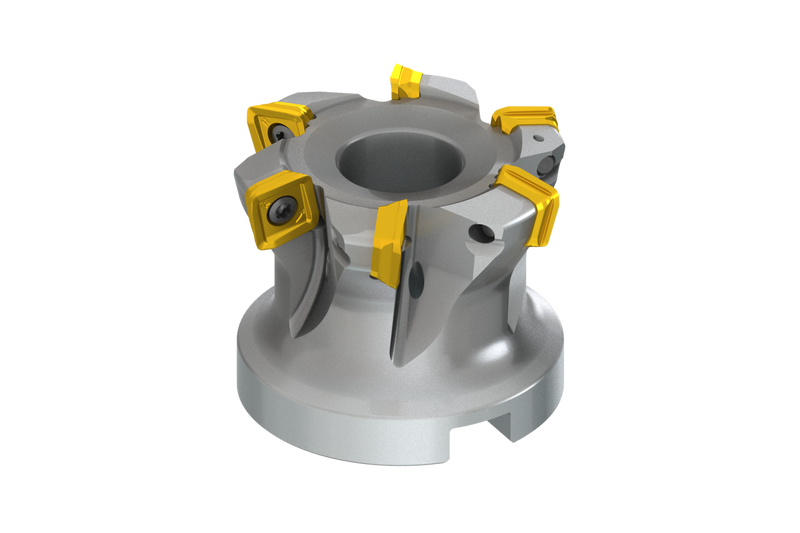

Fraise à grande avance, très polyvalente, de 12°, utilisant des plaquettes simples SO.. 12 avec un APMX de 1,9 mm, un diamètre de coupe de 45,3 mm avec un angle d'attaque de 12° et un alésage de connexion de 27 mm selon DIN 8030-C, une longueur fonctionnelle de 50 mm, avec arrosage interne et pas différentiel pour le surfaçage, la copie, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A06R-SMOSO12-C
Product Number8551871
Product FamilySSO12
Insert Geometry
Insert DesignSOHT 12
Depth of Cut Max — mm (APMX)1.9 mm

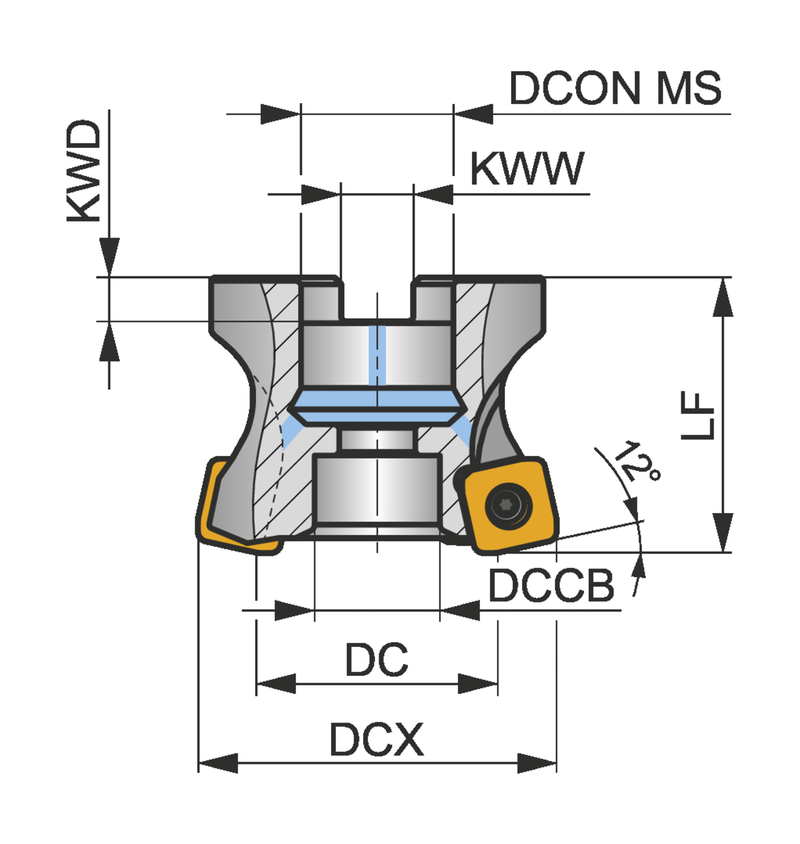

Dimensions
Cutting Diameter — in (DC)1.783"
Cutting Diameter — mm (DC)45.3 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSSO12
ShankFraise à surfacer-dresser DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8551871
EAN3603604263245
File Type Download
63A06R-SMOSO12-C — 3D Model STP Download
63A06R-SMOSO12-C — 2D Model DXF Download
63A06R-SMOSO12-C — Line Drawing PDF Download
