100A08R-SMOSO12-C
100A08R-SMOSO12-C
100A08R-SMOSO12-C

100A08R-SMOSO12-C

UGC DOR8551874
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,021.00 CAD - $1,021.00 CAD
$1,021.00 CAD
$1,021.00 CAD - $1,021.00 CAD
$1,021.00 CAD

Vendu en lots de : 1

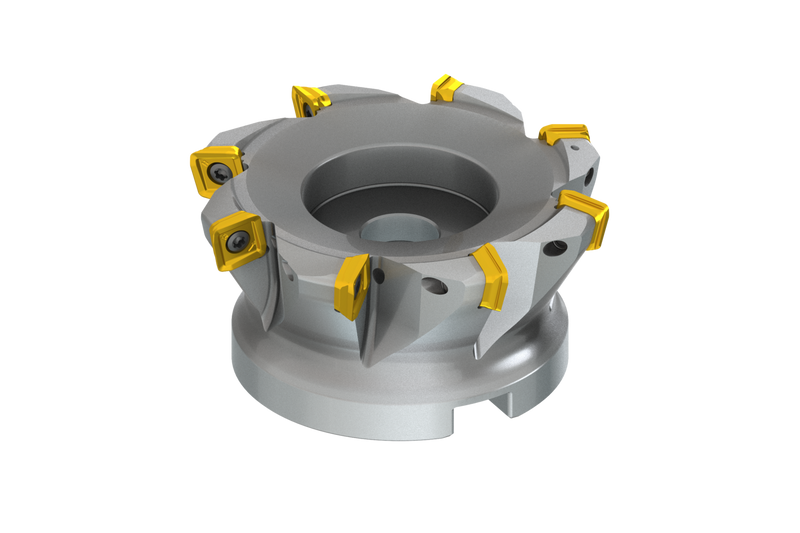

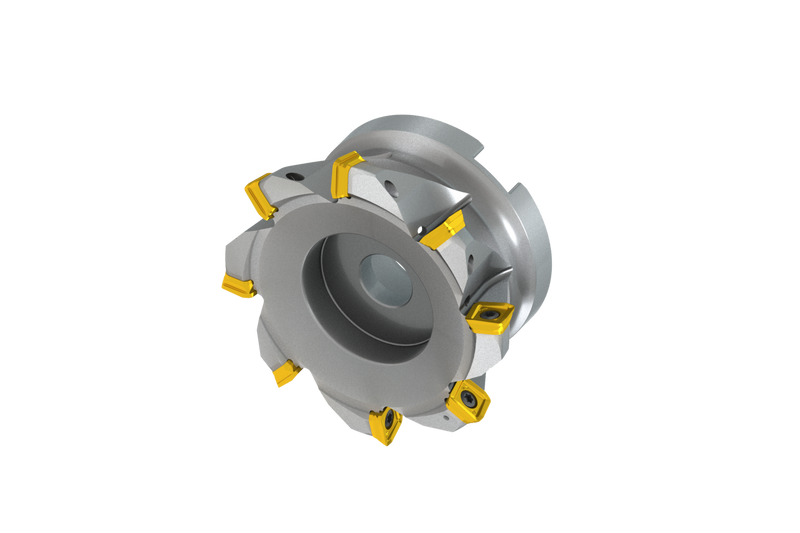

Fraise à grande avance, très polyvalente, de 12˚, utilisant des plaquettes simples SO. de style 12 avec un APMX de 1,9 mm. Diamètre de coupe de 82,3 mm avec un angle d'attaque de 12° et un alésage de connexion de 32 mm selon DIN 8030-C, longueur fonctionnelle de 50 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage en plongée progressive, le fraisage en roulant, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A08R-SMOSO12-C
Product Number8551874
Product FamilySSO12
Insert Geometry
Insert DesignSOHT 12
Depth of Cut Max — mm (APMX)1.9 mm

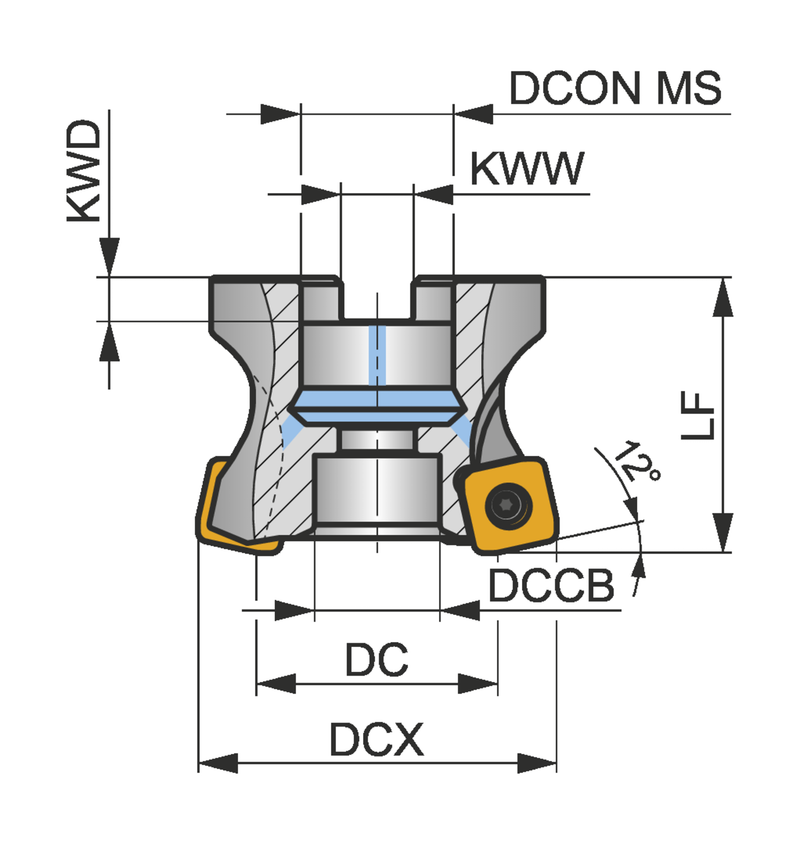

Dimensions
Cutting Diameter — in (DC)3.24"
Cutting Diameter — mm (DC)82.3 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSSO12
ShankFraise à surfacer-planer DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8551874
EAN3603604263276
File Type Download
100A08R-SMOSO12-C — 3D Model STP Download
100A08R-SMOSO12-C — 2D Model DXF Download
100A08R-SMOSO12-C — Line Drawing PDF Download
