150E3R472C125-ISSO12-C
150E3R472C125-ISSO12-C
150E3R472C125-ISSO12-C

150E3R472C125-ISSO12-C

UGC DOR8551876
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$540.00 CAD - $540.00 CAD
$540.00 CAD
$540.00 CAD - $540.00 CAD
$540.00 CAD

Vendu en lots de : 1

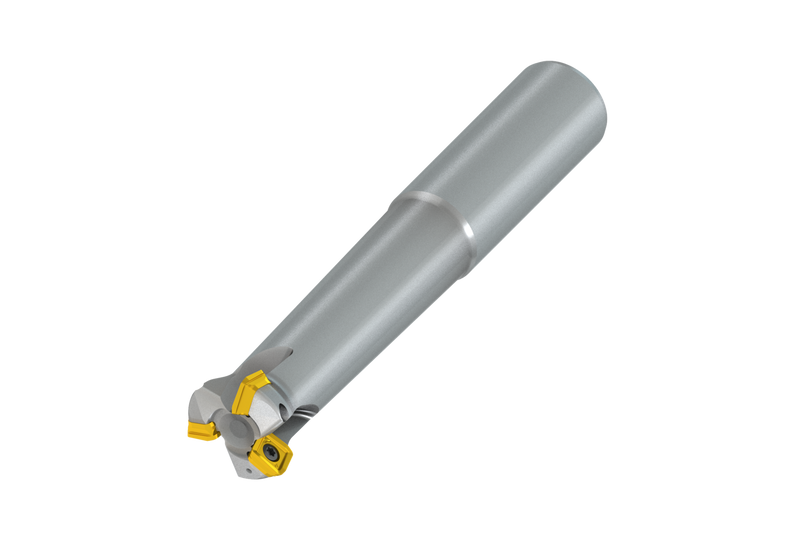

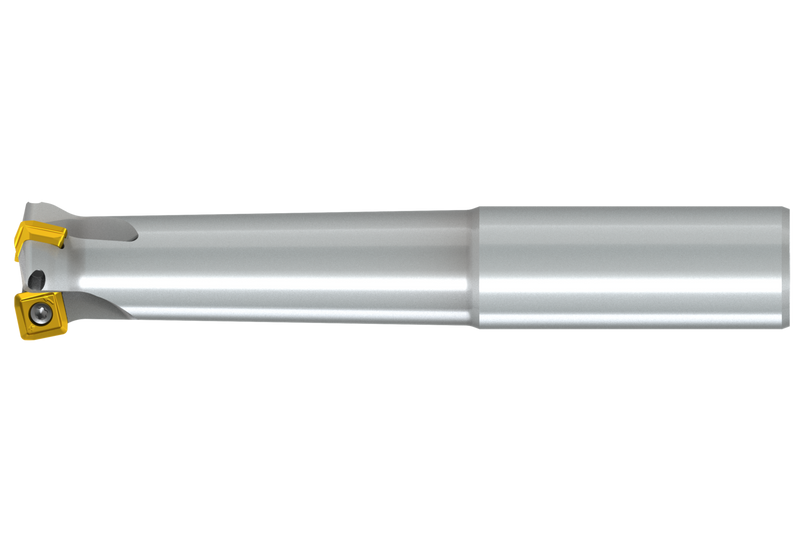

Fraise à avance rapide 12˚ très polyvalente utilisant des plaquettes SO.. 12 simple face avec APMX de 1,9 mm, diamètre de coupe de 0,803 pouce avec un angle d'attaque de 12° et une queue cylindrique de 1,25 pouce selon DIN 1835A, longueur fonctionnelle de 4,724 pouces et longueur totale de 7,874 pouces, arrosage central et pas différentiel pour le fraisage de face, le fraisage de copie, l'usinage en ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150E3R472C125-ISSO12-C
Product Number8551876
Product FamilyISSO12
Insert Geometry
Insert DesignSOHT 12

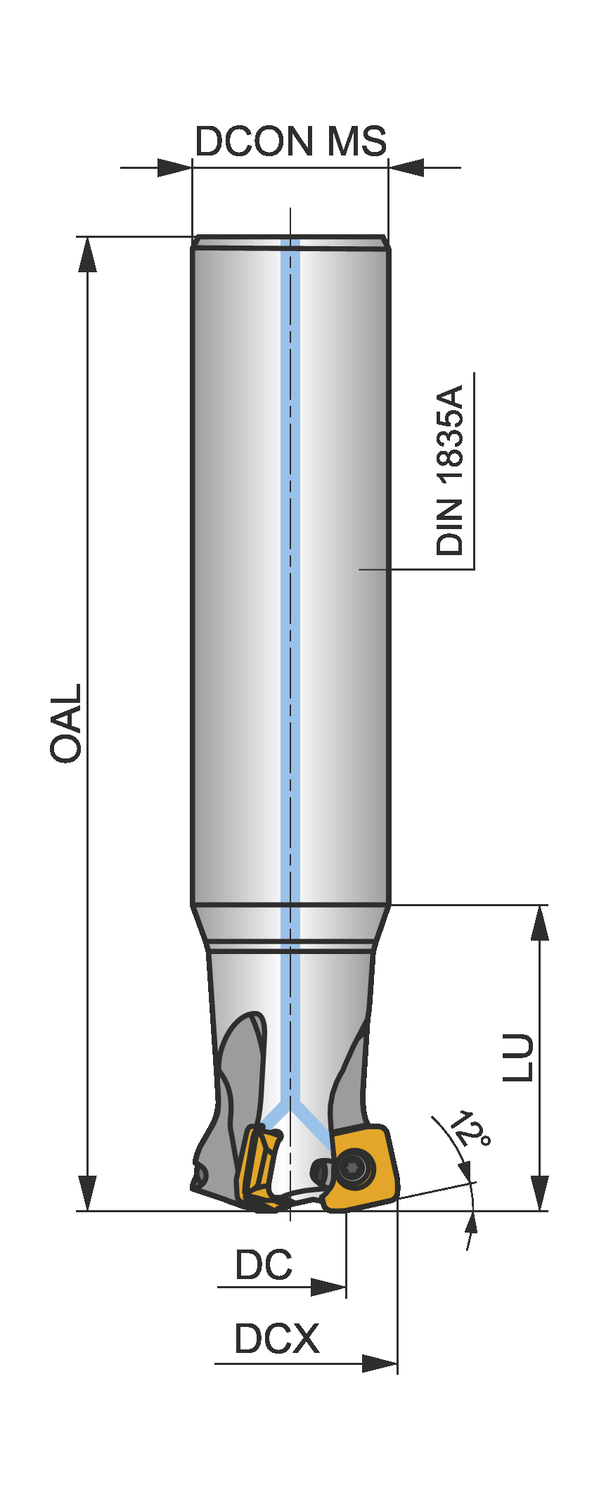

Dimensions
Cutting Diameter — in (DC)0.803"
Cutting Diameter — mm (DC)20.4 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — in (LU)4.724"
Usable Length — mm (LU)119.99 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSSO12
ShankQueue cylindrique DIN 1835A
Through Coolant Yes
Reference Numbers
EDP Number8551876
EAN3603604263290
File Type Download
150E3R472C125-ISSO12-C — 3D Model STP Download
150E3R472C125-ISSO12-C — 2D Model DXF Download
150E3R472C125-ISSO12-C — Line Drawing PDF Download
