CNMG 431-FF:T8415
CNMG 431-FF:T8415

CNMG 431-FF:T8415

UGC DOR8552988
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.57 CAD - $13.57 CAD
$13.57 CAD
$13.57 CAD - $13.57 CAD
$13.57 CAD

Vendu en lots de : 10

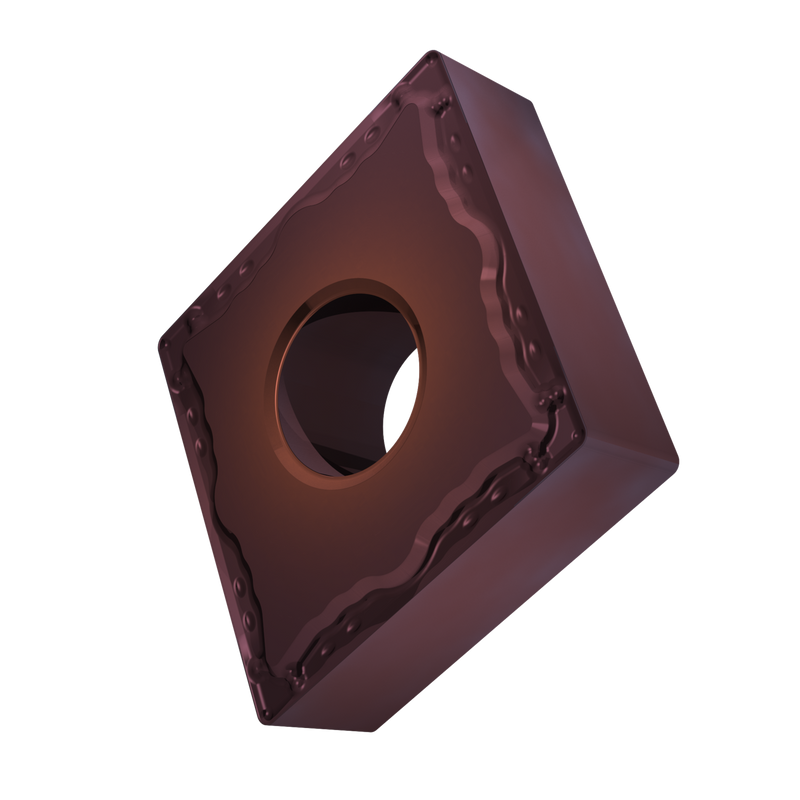

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 0,5 pouce, une épaisseur de 0,187 pouce, un rayon de bec de 0,016 pouce, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux FF avec des arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 431-FF:T8415
Product Name (ISO)CNMG 120404E-FF:T8415
GradeT8415
Chipbreaker (CBMD)FF
Product Number8552988
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle entre faces rhombiques 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number8552988
EAN3603604268042
File Type Download
CNMG 431-FF:T8415 — Line Drawing PDF Download
