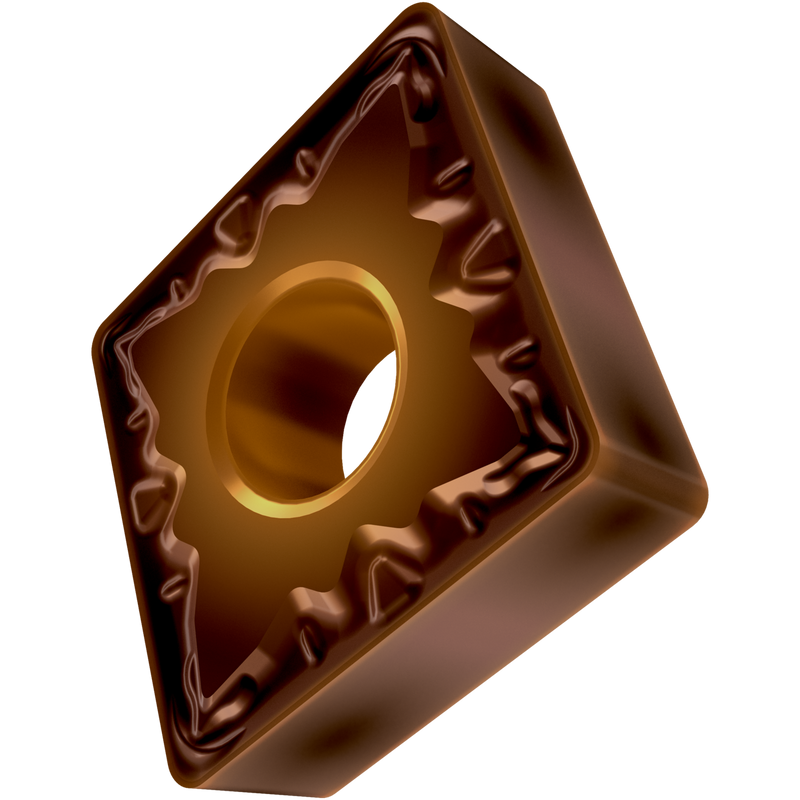

CNMG 431-FM:T8415
CNMG 431-FM:T8415

CNMG 431-FM:T8415

UGC DOR8552989
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.57 CAD - $13.57 CAD
$13.57 CAD
$13.57 CAD - $13.57 CAD
$13.57 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 0,5 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,016 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 431-FM:T8415
Product Name (ISO)CNMG 120404E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8552989
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle compris rhomboédrique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8552989
EAN3603604268059
File Type Download
CNMG 431-FM:T8415 — 3D Model STP Download
CNMG 431-FM:T8415 — Line Drawing PDF Download
