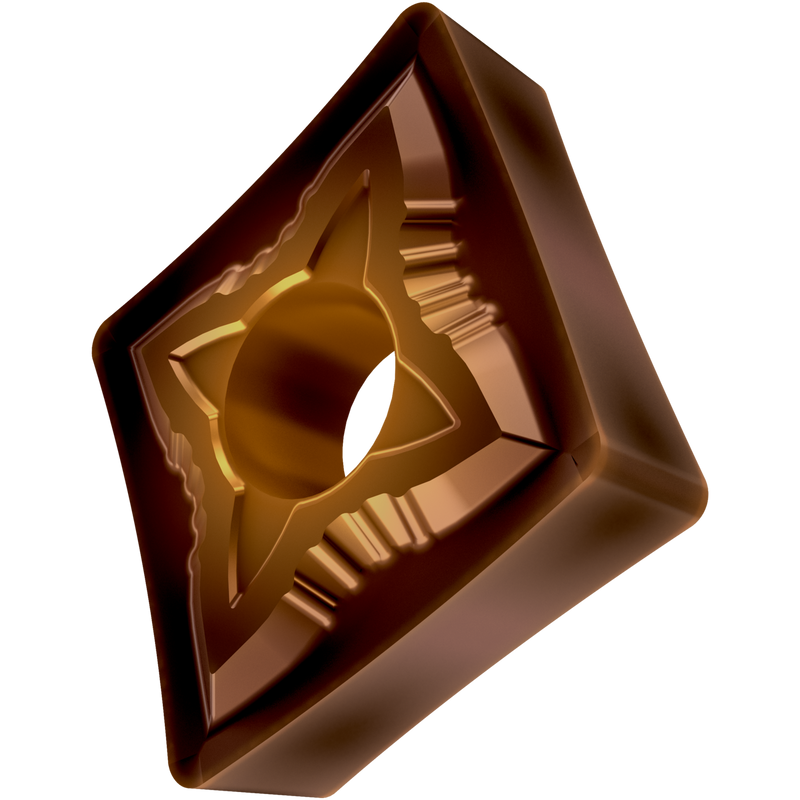

CNMG 432-SF:T8415
CNMG 432-SF:T8415

CNMG 432-SF:T8415

UGC DOR8553066
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.57 CAD - $13.57 CAD
$13.57 CAD
$13.57 CAD - $13.57 CAD
$13.57 CAD

Vendu en lots de : 10

Plaquette négative double face à 80° rhomboïde avec un diamètre de cercle inscrit de 0,5 pouce, une épaisseur de 0,187 pouce, un rayon de bec de 0,031 pouce, une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SF avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 432-SF:T8415
Product Name (ISO)CNMG 120408E-SF:T8415
GradeT8415
Chipbreaker (CBMD)SF
Product Number8553066
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553066
EAN3603604268127
File Type Download
CNMG 432-SF:T8415 — Line Drawing PDF Download
