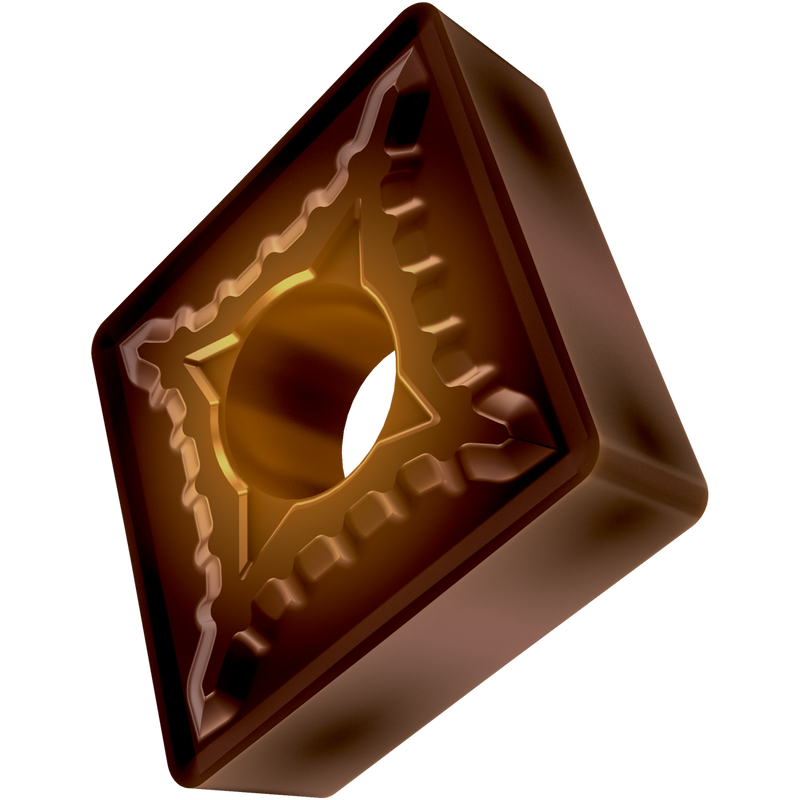

CNMG 433-SM:T8415
CNMG 433-SM:T8415

CNMG 433-SM:T8415

UGC DOR8553070
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.57 CAD - $13.57 CAD
$13.57 CAD
$13.57 CAD - $13.57 CAD
$13.57 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 0,5 pouce, épaisseur de 0,187 pouce, rayon de pointe de 0,047 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-SM:T8415
Product Name (ISO)CNMG 120412E-SM:T8415
GradeT8415
Chipbreaker (CBMD)SM
Product Number8553070
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8553070
EAN3603604268165
File Type Download
CNMG 433-SM:T8415 — 3D Model STP Download
CNMG 433-SM:T8415 — 2D Model DXF Download
CNMG 433-SM:T8415 — Line Drawing PDF Download
