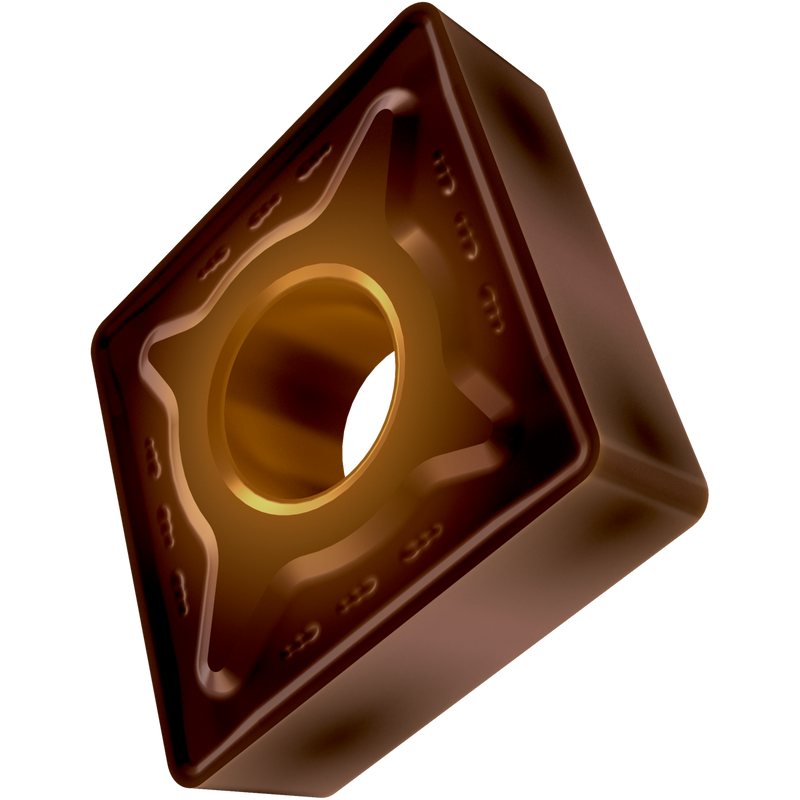

CNMG 543-RM:T8415
CNMG 543-RM:T8415

CNMG 543-RM:T8415

UGC DOR8553071
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
10 In Stock - Motool Edmonton
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.57 CAD - $21.57 CAD
$21.57 CAD
$21.57 CAD - $21.57 CAD
$21.57 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 0,613 pouce, épaisseur de 0,25 pouce, rayon de bec de 0,047 pouce, précision de plaçage selon la classe de tolérance ISO M, brise-copeaux RM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 543-RM:T8415
Product Name (ISO)CNMG 160612E-RM:T8415
GradeT8415
Chipbreaker (CBMD)RM
Product Number8553071
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle d'inclinaison rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8553071
EAN3603604268172
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
CNMG 543-RM:T8415 — Line Drawing PDF Download
