DNMA 441:T8415
DNMA 441:T8415

DNMA 441:T8415

UGC DOR8553076
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.64 CAD - $18.64 CAD
$18.64 CAD
$18.64 CAD - $18.64 CAD
$18.64 CAD

Vendu en lots de : 10

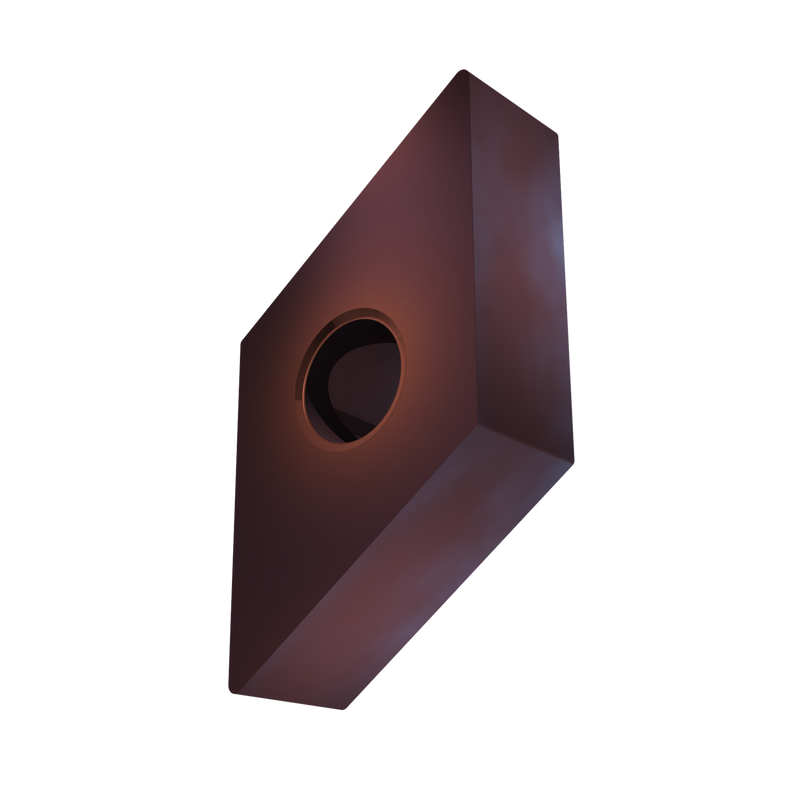

Plaquette négative double face à 55° rhomboïde avec un diamètre de cercle inscrit de 0,5 pouce, une épaisseur de 0,25 pouce, un rayon de bec de 0,016 pouce et une précision d'indexage selon la classe de tolérance ISO-M, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMA 441:T8415
Product Name (ISO)DNMA 150604:T8415
GradeT8415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8553076
Product FamilyDNMA

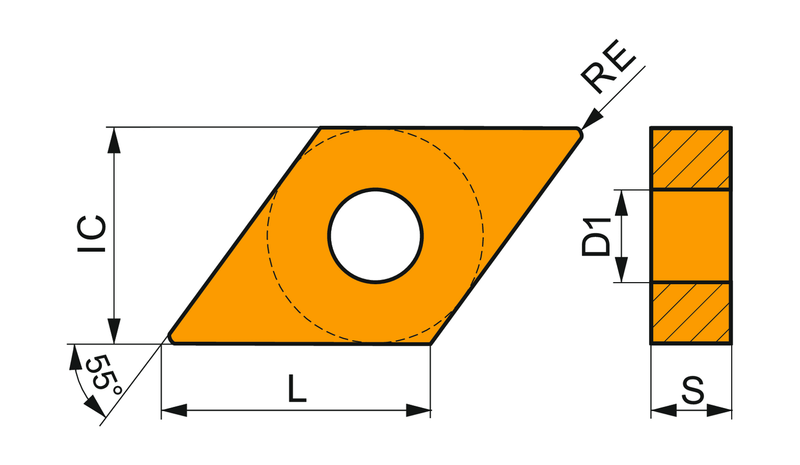

Insert Geometry
Insert DesignDéfense Nationale et Marine de l'Air
Insert Shape Code (SC)D - angle de 55° inclus rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.154"
Depth of Cut Max — mm (APMX)3.9 mm
Tool Information
Reference Numbers
EDP Number8553076
EAN3603604268226
File Type Download
DNMA 441:T8415 — Line Drawing PDF Download
