DNMA 442:T8415
DNMA 442:T8415

DNMA 442:T8415

UGC DOR8553077
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.64 CAD - $18.64 CAD
$18.64 CAD
$18.64 CAD - $18.64 CAD
$18.64 CAD

Vendu en lots de : 10

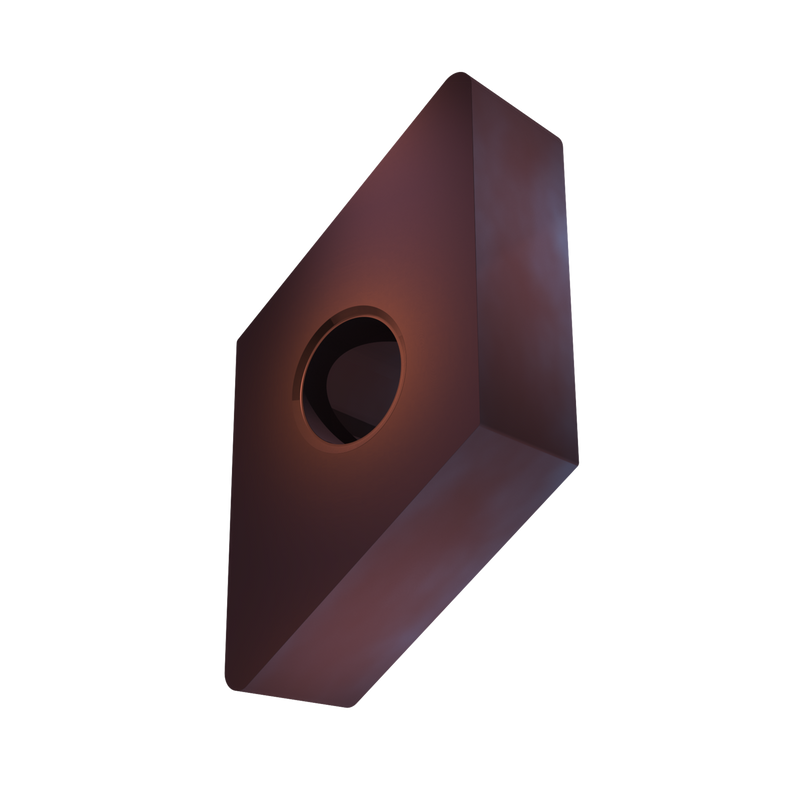

Plaquette de tournage négative double face, rhomboïde 55° avec cercle inscrit de 0,5 pouce de diamètre, 0,25 pouce d'épaisseur, rayon de bec de 0,031 pouce et précision d'indexage selon la classe de tolérance ISO-M, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMA 442:T8415
Product Name (ISO)DNMA 150608:T8415
GradeT8415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8553077
Product FamilyGDNM

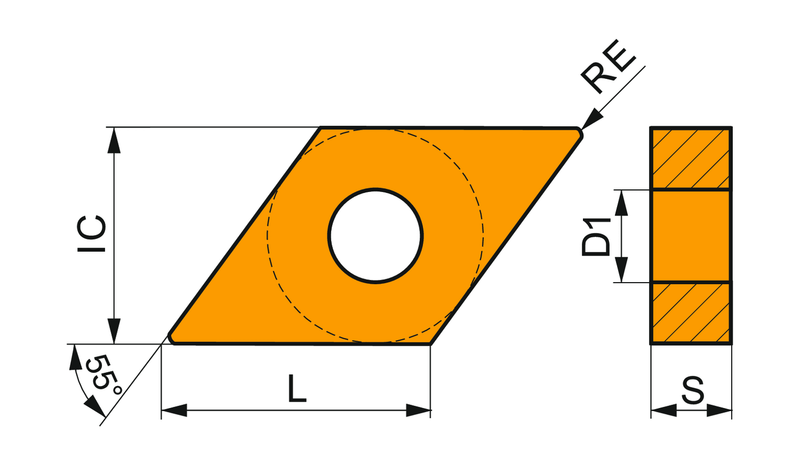

Insert Geometry
Insert DesignDNMA
Insert Shape Code (SC)D - angle compris de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.154"
Depth of Cut Max — mm (APMX)3.9 mm
Tool Information
Reference Numbers
EDP Number8553077
EAN3603604268233
File Type Download
DNMA 442:T8415 — Line Drawing PDF Download
