DNMG 331-SF:T8415
DNMG 331-SF:T8415

DNMG 331-SF:T8415

UGC DOR8553081
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.50 CAD - $14.50 CAD
$14.50 CAD
$14.50 CAD - $14.50 CAD
$14.50 CAD

Vendu en lots de : 10

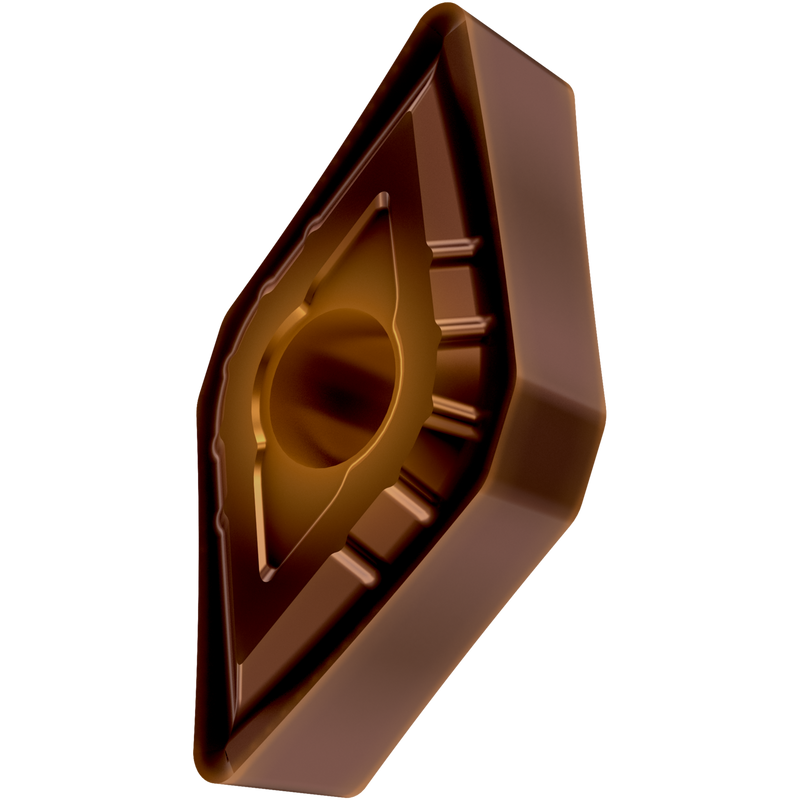

Plaquette négative double face, rhomboïde 55° avec un diamètre de cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, rayon de pointe de 0,016 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SF avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 331-SF:T8415
Product Name (ISO)DNMG 110404E-SF:T8415
GradeT8415
Chipbreaker (CBMD)SF
Product Number8553081
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle interne rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553081
EAN3603604268271
File Type Download
DNMG 331-SF:T8415 — Line Drawing PDF Download
