DNMG 441R-SI:T8415
DNMG 441R-SI:T8415

DNMG 441R-SI:T8415

UGC DOR8553094
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.64 CAD - $18.64 CAD
$18.64 CAD
$18.64 CAD - $18.64 CAD
$18.64 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec diamètre de cercle inscrit de 0,5 pouce, épaisseur de 0,25 pouce, rayon de bec de 0,016 pouce, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux SI avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 441R-SI:T8415
Product Name (ISO)DNMG 150604ER-SI:T8415
GradeT8415
Chipbreaker (CBMD)Oui
Product Number8553094
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle aigu de 55° du losange
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553094
EAN3603604268400
File Type Download

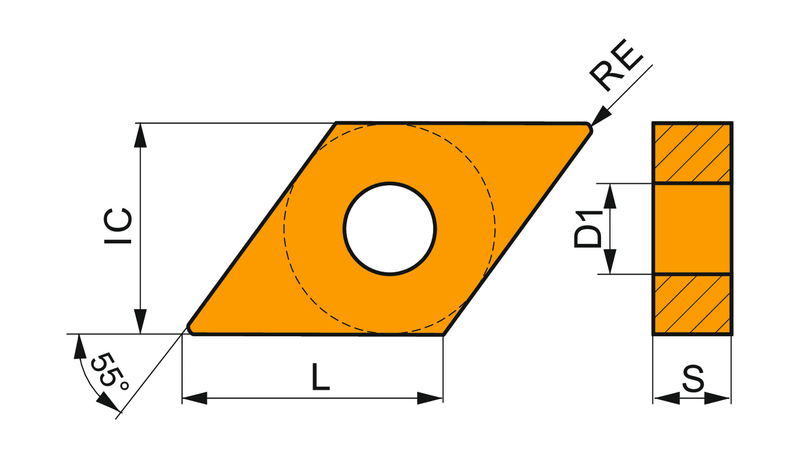

DNMG 441R-SI:T8415 — Line Drawing PDF Download
