DNMG 441-SF:T8415
DNMG 441-SF:T8415

DNMG 441-SF:T8415

UGC DOR8553095
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.64 CAD - $18.64 CAD
$18.64 CAD
$18.64 CAD - $18.64 CAD
$18.64 CAD

Vendu en lots de : 10

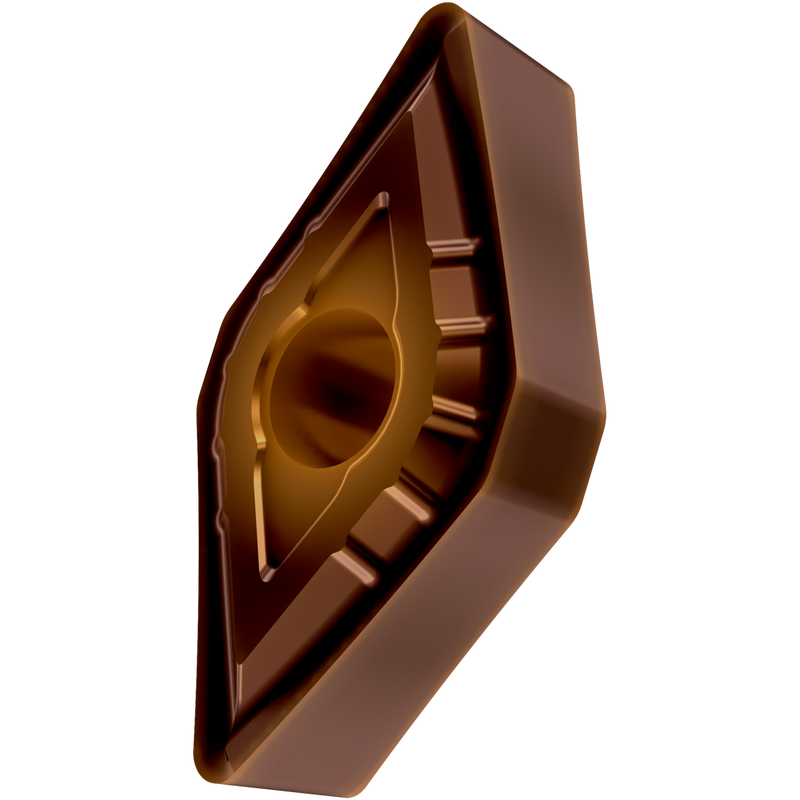

Plaquette négative double face, rhomboïdale à 55° avec diamètre de cercle inscrit de 0,5 pouce, épaisseur de 0,25 pouce, rayon de bec de 0,016 pouce, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux SF avec arêtes de coupe arrondies, en qualité T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 441-SF:T8415
Product Name (ISO)DNMG 150604E-SF:T8415
GradeT8415
Chipbreaker (CBMD)SF
Product Number8553095
Product FamilyDNMG

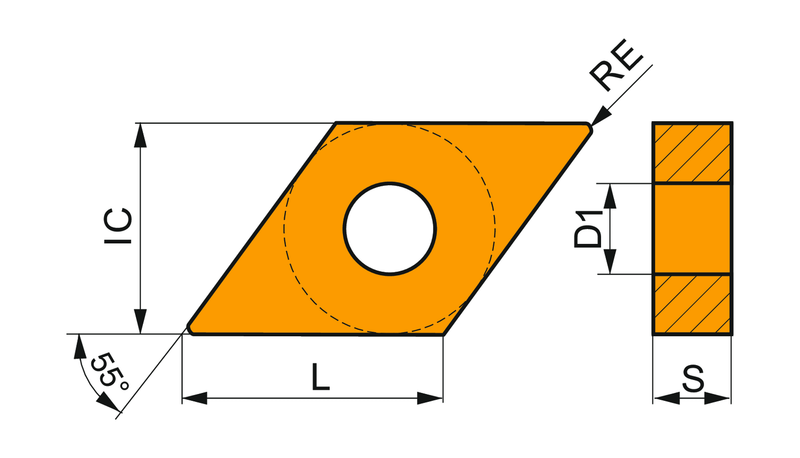

Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle interne rhomboïdal 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553095
EAN3603604268417
File Type Download
DNMG 441-SF:T8415 — Line Drawing PDF Download
