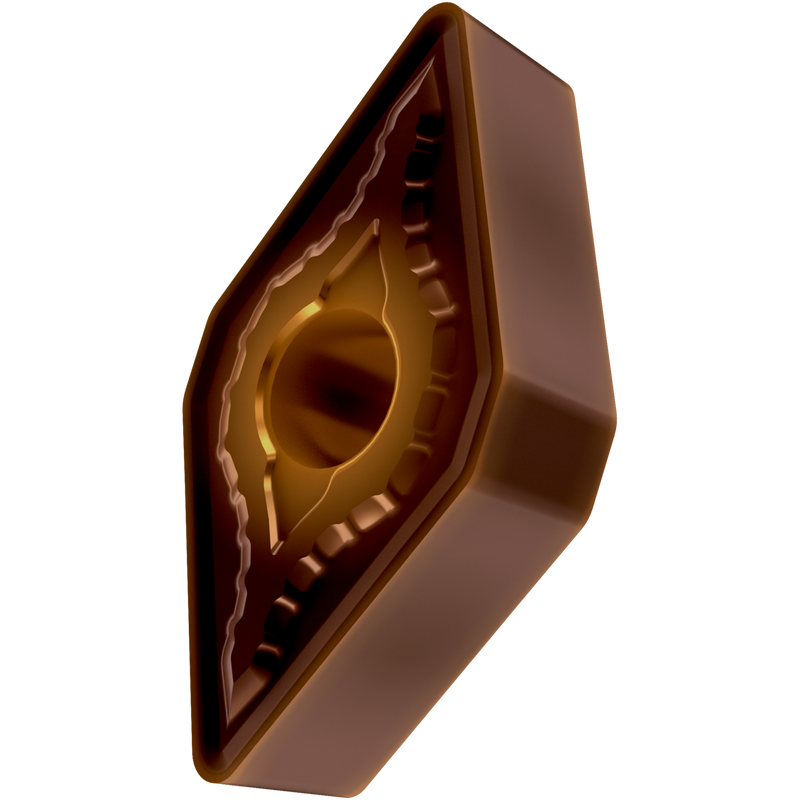

DNMG 443-SM:T8415
DNMG 443-SM:T8415

DNMG 443-SM:T8415

UGC DOR8553105
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.64 CAD - $18.64 CAD
$18.64 CAD
$18.64 CAD - $18.64 CAD
$18.64 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec un diamètre de cercle inscrit de 0,5 pouce, une épaisseur de 0,25 pouce, un rayon de bec de 0,047 pouce, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux SM avec des arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 443-SM:T8415
Product Name (ISO)DNMG 150612E-SM:T8415
GradeT8415
Chipbreaker (CBMD)SM
Product Number8553105
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle d'inclinaison 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8553105
EAN3603604268516
File Type Download
DNMG 443-SM:T8415 — 3D Model STP Download
DNMG 443-SM:T8415 — 2D Model DXF Download
DNMG 443-SM:T8415 — Line Drawing PDF Download
