SNMG 432-RM:T8415
SNMG 432-RM:T8415

SNMG 432-RM:T8415

UGC DOR8553109
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.57 CAD - $13.57 CAD
$13.57 CAD
$13.57 CAD - $13.57 CAD
$13.57 CAD

Vendu en lots de : 10

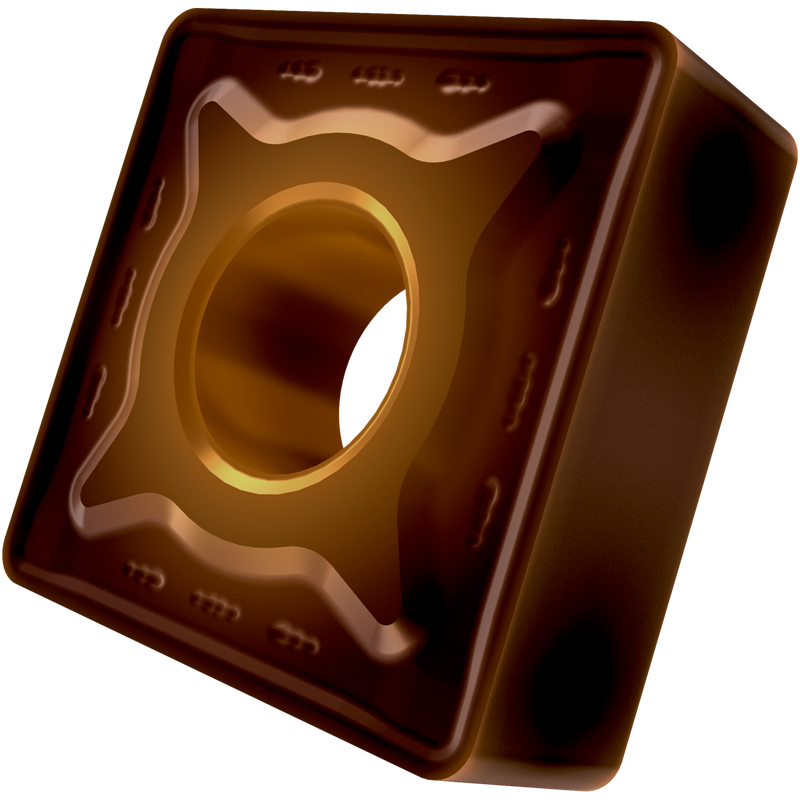

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 0,5 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-RM:T8415
Product Name (ISO)SNMG 120408E-RM:T8415
GradeT8415
Chipbreaker (CBMD)RM
Product Number8553109
Product FamilySNMG
Insert Geometry
Insert DesignGMNS
Insert Shape Code (SC)C - carré

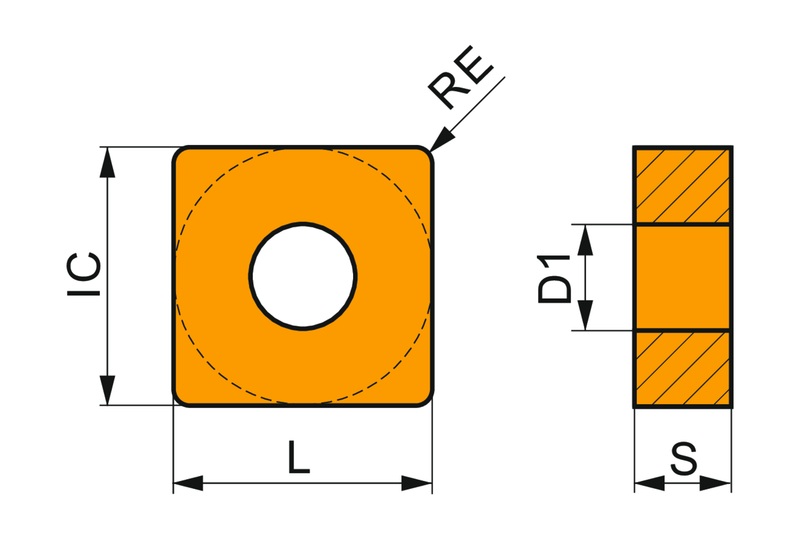

Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553109
EAN3603604268554
File Type Download
SNMG 432-RM:T8415 — Line Drawing PDF Download
