SNMG 432-SM:T8415
SNMG 432-SM:T8415

SNMG 432-SM:T8415

UGC DOR8553111
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.57 CAD - $13.57 CAD
$13.57 CAD
$13.57 CAD - $13.57 CAD
$13.57 CAD

Vendu en lots de : 10

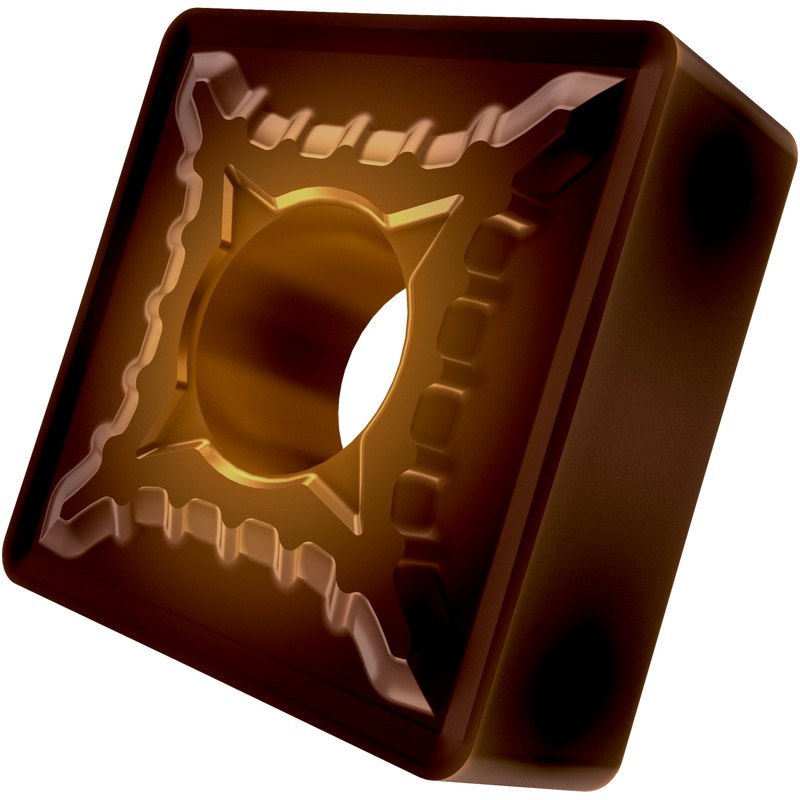

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 0,5 pouce, 0,187 pouce d'épaisseur, un rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SM avec des arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-SM:T8415
Product Name (ISO)SNMG 120408E-SM:T8415
GradeT8415
Chipbreaker (CBMD)SM
Product Number8553111
Product FamilyMNEC
Insert Geometry
Insert DesignGSMN
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553111
EAN3603604268578
File Type Download
SNMG 432-SM:T8415 — 3D Model STP Download
SNMG 432-SM:T8415 — 2D Model DXF Download
SNMG 432-SM:T8415 — Line Drawing PDF Download
