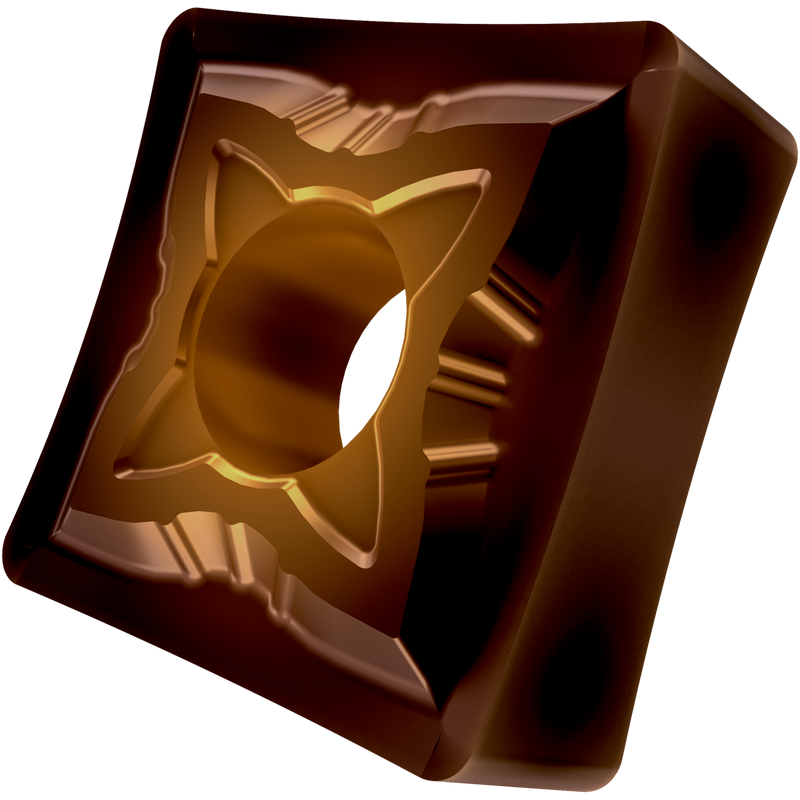

SNMG 433-SF:T8415
SNMG 433-SF:T8415

SNMG 433-SF:T8415

UGC DOR8553113
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.57 CAD - $13.57 CAD
$13.57 CAD
$13.57 CAD - $13.57 CAD
$13.57 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée, avec un diamètre de cercle inscrit de 0,5 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,047 pouce, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux SF avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 433-SF:T8415
Product Name (ISO)SNMG 120412E-SF:T8415
GradeT8415
Chipbreaker (CBMD)SF
Product Number8553113
Product FamilyGNNM
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8553113
EAN3603604268592
File Type Download
SNMG 433-SF:T8415 — Line Drawing PDF Download
