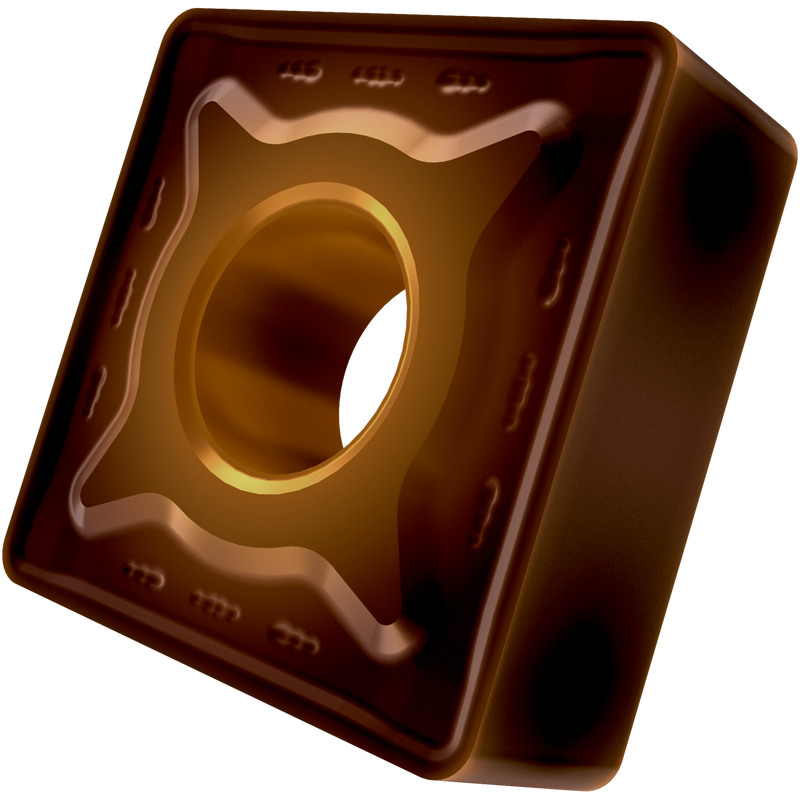

SNMG 543-RM:T8415
SNMG 543-RM:T8415

SNMG 543-RM:T8415

UGC DOR8553114
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.57 CAD - $21.57 CAD
$21.57 CAD
$21.57 CAD - $21.57 CAD
$21.57 CAD

Vendu en lots de : 10

Plaquette négative double-face pour tournage, carrée, avec cercle inscrit de 0,625 pouce de diamètre, épaisseur de 0,25 pouce, rayon de bec de 0,047 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 543-RM:T8415
Product Name (ISO)SNMG 150612E-RM:T8415
GradeT8415
Chipbreaker (CBMD)RM
Product Number8553114
Product FamilySNMG
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number8553114
EAN3603604268608
File Type Download
SNMG 543-RM:T8415 — Line Drawing PDF Download
