SNMG 643-SM:T8415
SNMG 643-SM:T8415

SNMG 643-SM:T8415

UGC DOR8553115
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.29 CAD - $29.29 CAD
$29.29 CAD
$29.29 CAD - $29.29 CAD
$29.29 CAD

Vendu en lots de : 10

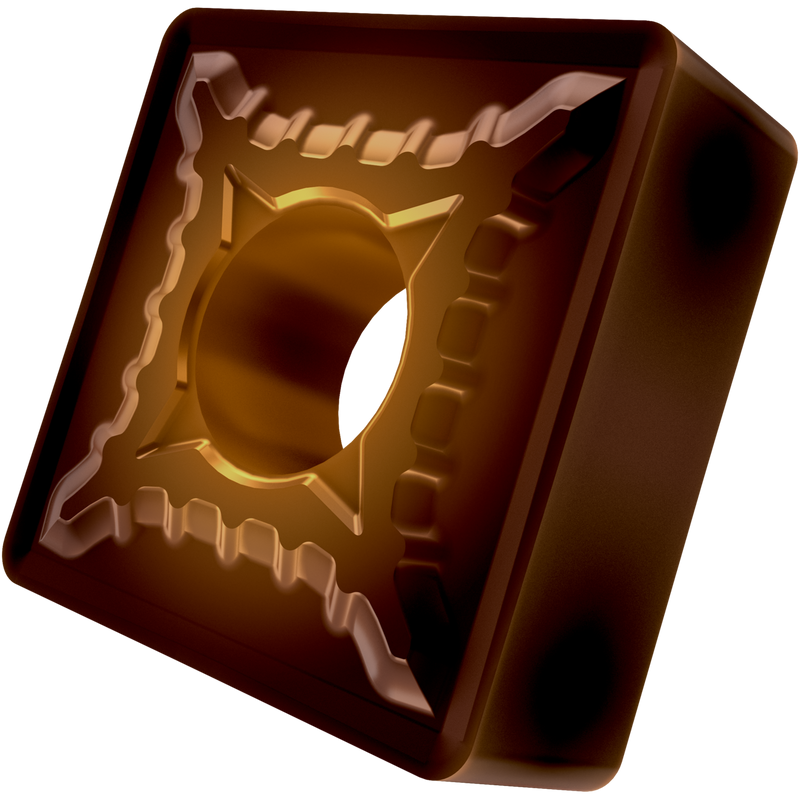

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 0,75 pouce, épaisseur de 0,25 pouce, rayon de bec de 0,047 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 643-SM:T8415
Product Name (ISO)SNMG 190612E-SM:T8415
GradeT8415
Chipbreaker (CBMD)SM
Product Number8553115
Product FamilySNMG
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.217"
Depth of Cut Max — mm (APMX)5.5 mm
Tool Information
Reference Numbers
EDP Number8553115
EAN3603604268615
File Type Download
SNMG 643-SM:T8415 — Line Drawing PDF Download
