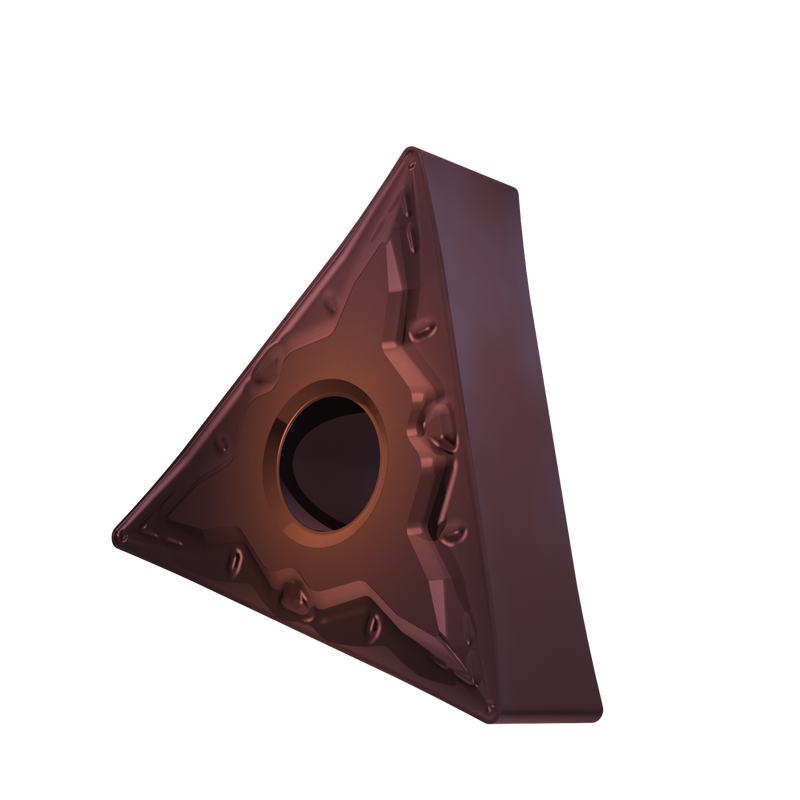

TNMG 331-FM:T8415
TNMG 331-FM:T8415

TNMG 331-FM:T8415

UGC DOR8553120
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.86 CAD - $11.86 CAD
$11.86 CAD
$11.86 CAD - $11.86 CAD
$11.86 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, triangulaire avec diamètre du cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, rayon de pointe de 0,016 pouce, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 331-FM:T8415
Product Name (ISO)TNMG 160404E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8553120
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - angle inclus triangulaire de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553120
EAN3603604268660
File Type Download
TNMG 331-FM:T8415 — Line Drawing PDF Download
