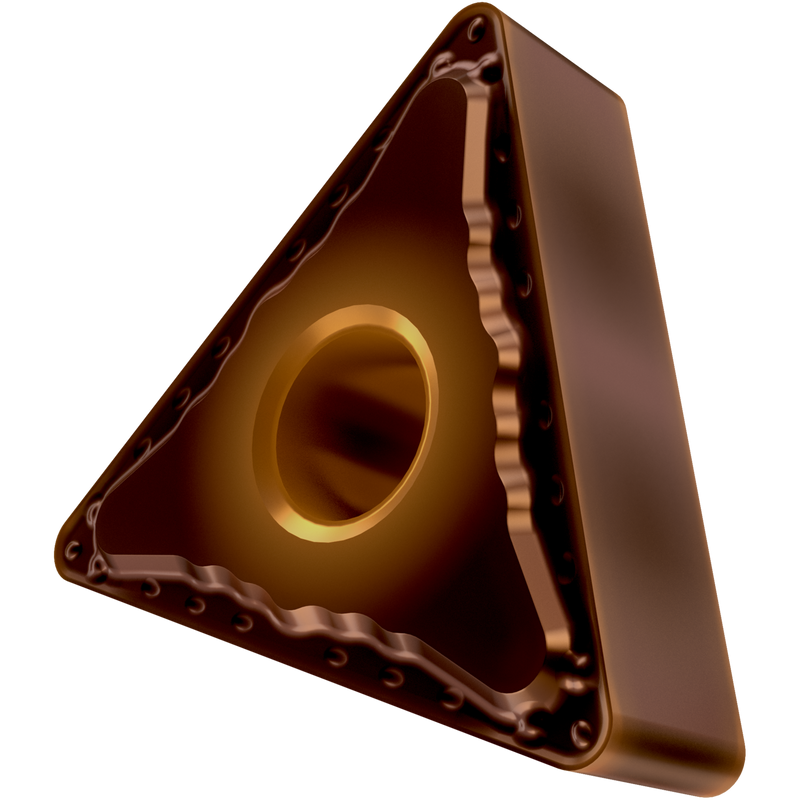

TNMG 332-FF:T8415
TNMG 332-FF:T8415

TNMG 332-FF:T8415

UGC DOR8553125
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.86 CAD - $11.86 CAD
$11.86 CAD
$11.86 CAD - $11.86 CAD
$11.86 CAD

Vendu en lots de : 10

Plaquette négative double face à géométrie triangulaire avec un diamètre de cercle inscrit de 0,375 pouce, épaisseur 0,187 pouce, rayon de pointe de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FF avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-FF:T8415
Product Name (ISO)TNMG 160408E-FF:T8415
GradeT8415
Chipbreaker (CBMD)FF
Product Number8553125
Product FamilyTNMG
Insert Geometry
Insert DesignTélédéclaration Nationale des Impôts et Taxes
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number8553125
EAN3603604268714
File Type Download
TNMG 332-FF:T8415 — Line Drawing PDF Download
