TNMG 332-FM:T8415
TNMG 332-FM:T8415

TNMG 332-FM:T8415

UGC DOR8553126
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.86 CAD - $11.86 CAD
$11.86 CAD
$11.86 CAD - $11.86 CAD
$11.86 CAD

Vendu en lots de : 10

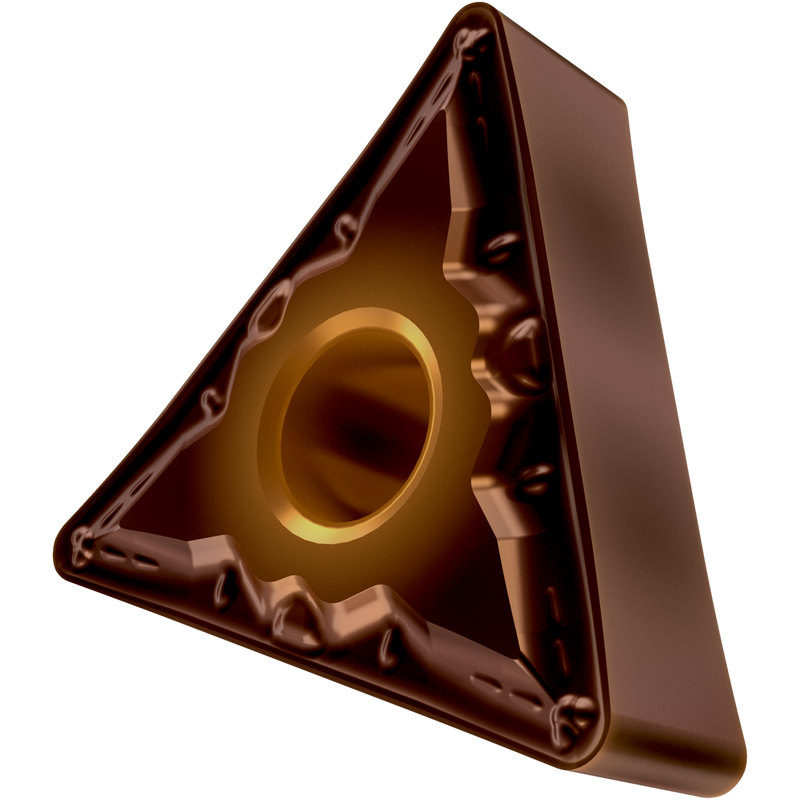

Plaquette négative double face, triangulaire avec un diamètre de cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-FM:T8415
Product Name (ISO)TNMG 160408E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8553126
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle d'ouverture de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553126
EAN3603604268721
