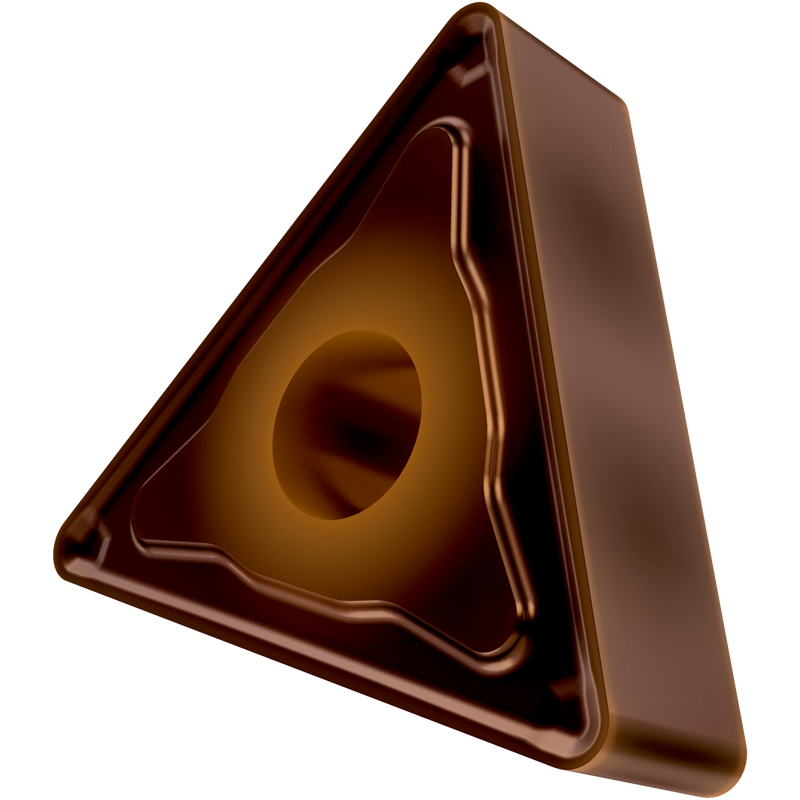

TNMG 332-NM:T8415
TNMG 332-NM:T8415

TNMG 332-NM:T8415

UGC DOR8553128
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.86 CAD - $11.86 CAD
$11.86 CAD
$11.86 CAD - $11.86 CAD
$11.86 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, triangulaire avec diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NM avec arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-NM:T8415
Product Name (ISO)TNMG 160408E-NM:T8415
GradeT8415
Chipbreaker (CBMD)NM
Product Number8553128
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - angle d'ouverture 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553128
EAN3603604268745
File Type Download
TNMG 332-NM:T8415 — Line Drawing PDF Download
