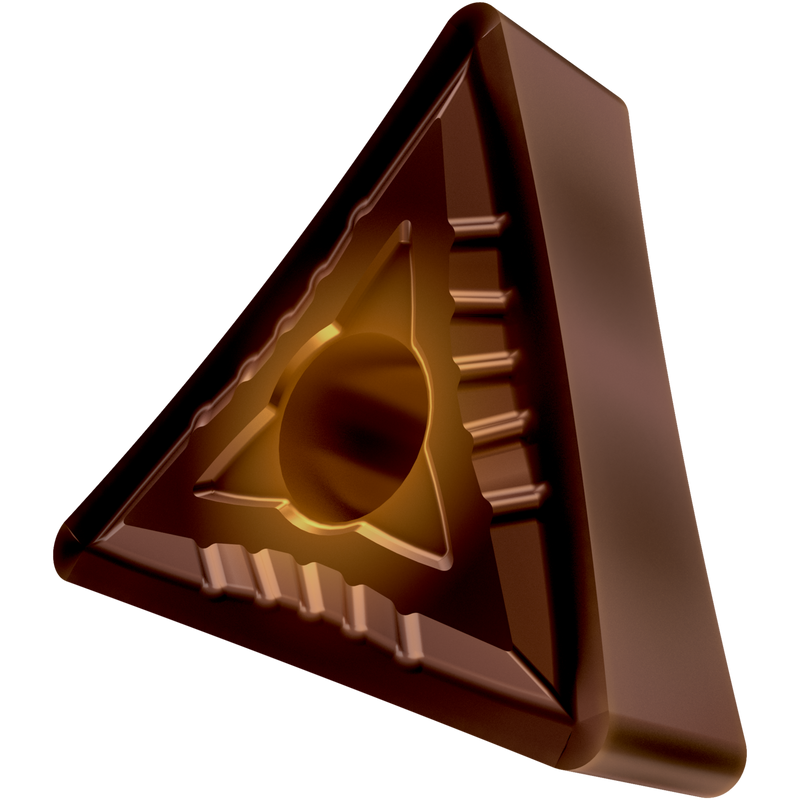

TNMG 333-SF:T8415
TNMG 333-SF:T8415

TNMG 333-SF:T8415

UGC DOR8553132
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.86 CAD - $11.86 CAD
$11.86 CAD
$11.86 CAD - $11.86 CAD
$11.86 CAD

Vendu en lots de : 10

Plaquette négative double face à géométrie triangulaire de diamètre de cercle inscrit de 0,375 pouce, d'épaisseur 0,187 pouce, rayon de bec 0,047 pouce, précision d'indexage selon ISO-Tolérance classe-M, brise-copeaux SF avec arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 333-SF:T8415
Product Name (ISO)TNMG 160412E-SF:T8415
GradeT8415
Chipbreaker (CBMD)SF
Product Number8553132
Product FamilyTNMGC
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number8553132
EAN3603604268783
File Type Download
TNMG 333-SF:T8415 — Line Drawing PDF Download
