TNMG 333-SM:T8415
TNMG 333-SM:T8415

TNMG 333-SM:T8415

UGC DOR8553133
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.86 CAD - $11.86 CAD
$11.86 CAD
$11.86 CAD - $11.86 CAD
$11.86 CAD

Vendu en lots de : 10

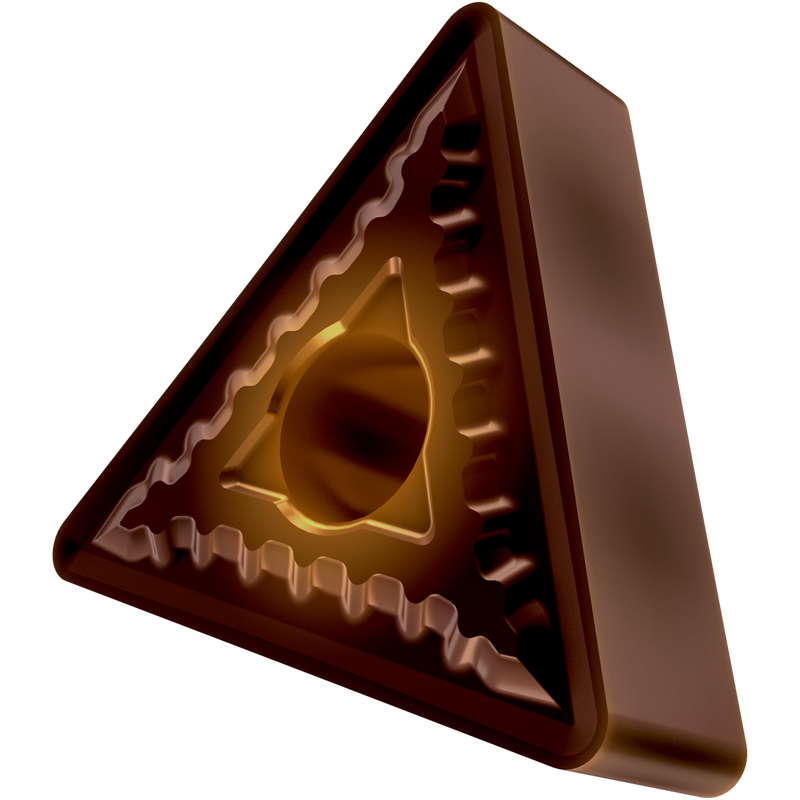

Plaquette de tournage négative double face, triangulaire, avec un diamètre de cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,047 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 333-SM:T8415
Product Name (ISO)TNMG 160412E-SM:T8415
GradeT8415
Chipbreaker (CBMD)SM
Product Number8553133
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - angle inclus de 60° triangulaire
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number8553133
EAN3603604268790
File Type Download
TNMG 333-SM:T8415 — Line Drawing PDF Download
