TNMG 432-SM:T8415
TNMG 432-SM:T8415

TNMG 432-SM:T8415

UGC DOR8553138
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.90 CAD - $15.90 CAD
$15.90 CAD
$15.90 CAD - $15.90 CAD
$15.90 CAD

Vendu en lots de : 10

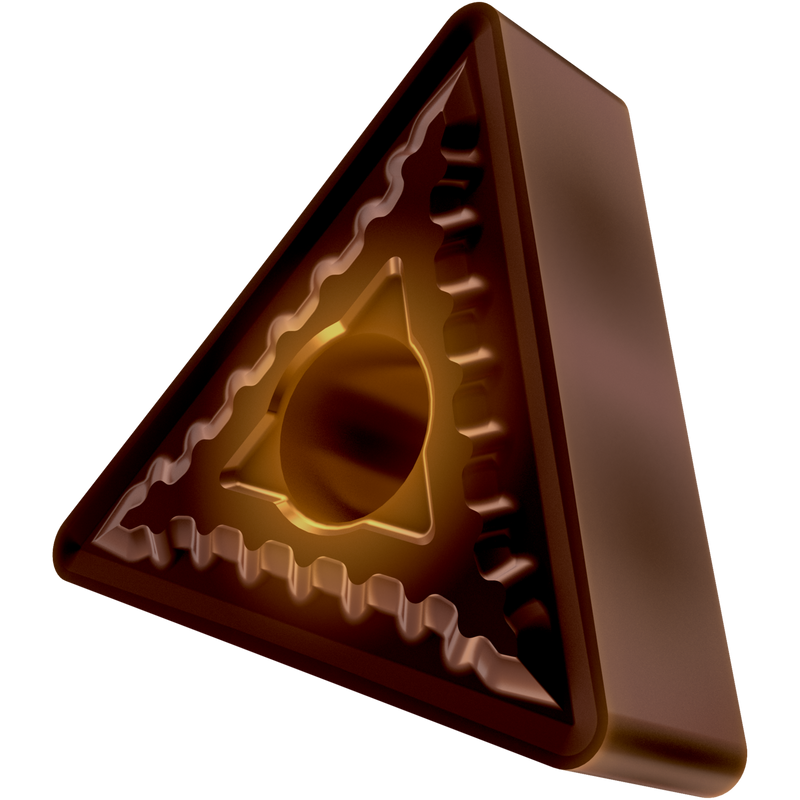

Plaquette de tournage négative double face, triangulaire, avec un diamètre de cercle inscrit de 0,5 pouce, une épaisseur de 0,187 pouce, un rayon de bec de 0,031 pouce, une précision d'indexage selon la classe de tolérance ISO-M, un brise-copeaux SM avec des arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 432-SM:T8415
Product Name (ISO)TNMG 220408E-SM:T8415
GradeT8415
Chipbreaker (CBMD)SM
Product Number8553138
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - angulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553138
EAN3603604268844
File Type Download
TNMG 432-SM:T8415 — Line Drawing PDF Download
