TNMG 433-SF:T8415
TNMG 433-SF:T8415

TNMG 433-SF:T8415

UGC DOR8553139
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.90 CAD - $15.90 CAD
$15.90 CAD
$15.90 CAD - $15.90 CAD
$15.90 CAD

Vendu en lots de : 10

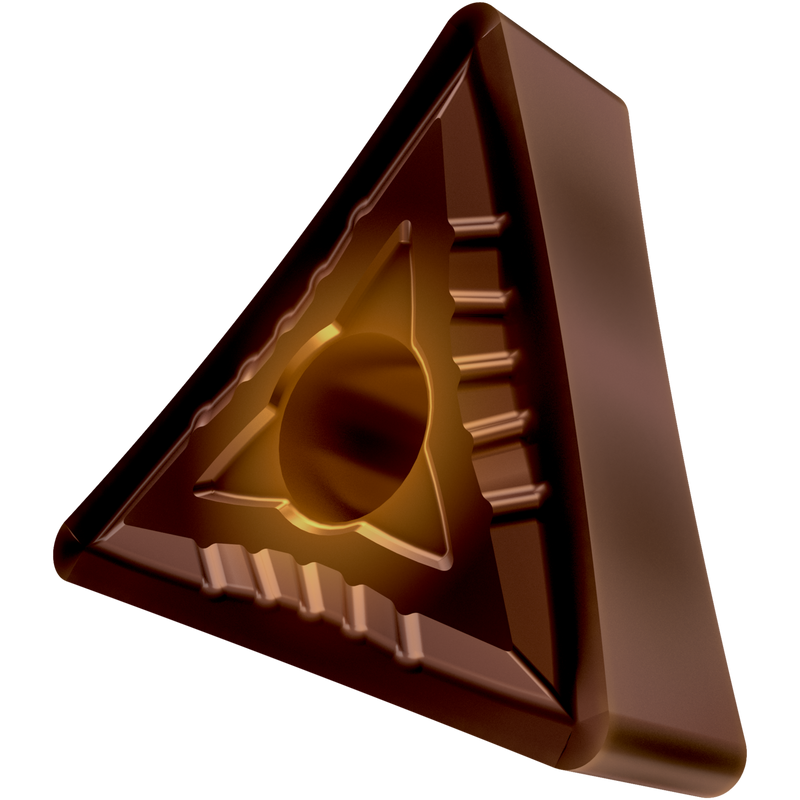

Plaquette de tournage négative double face, triangulaire avec un diamètre de cercle inscrit de 0,5 pouce, 0,187 pouce d'épaisseur, un rayon de bec de 0,047 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SF avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 433-SF:T8415
Product Name (ISO)TNMG 220412E-SF:T8415
GradeT8415
Chipbreaker (CBMD)SF
Product Number8553139
Product FamilyTNMG
Insert Geometry
Insert DesignGTNM
Insert Shape Code (SC)T - angle d'ouverture de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number8553139
EAN3603604268851
File Type Download
TNMG 433-SF:T8415 — Line Drawing PDF Download
