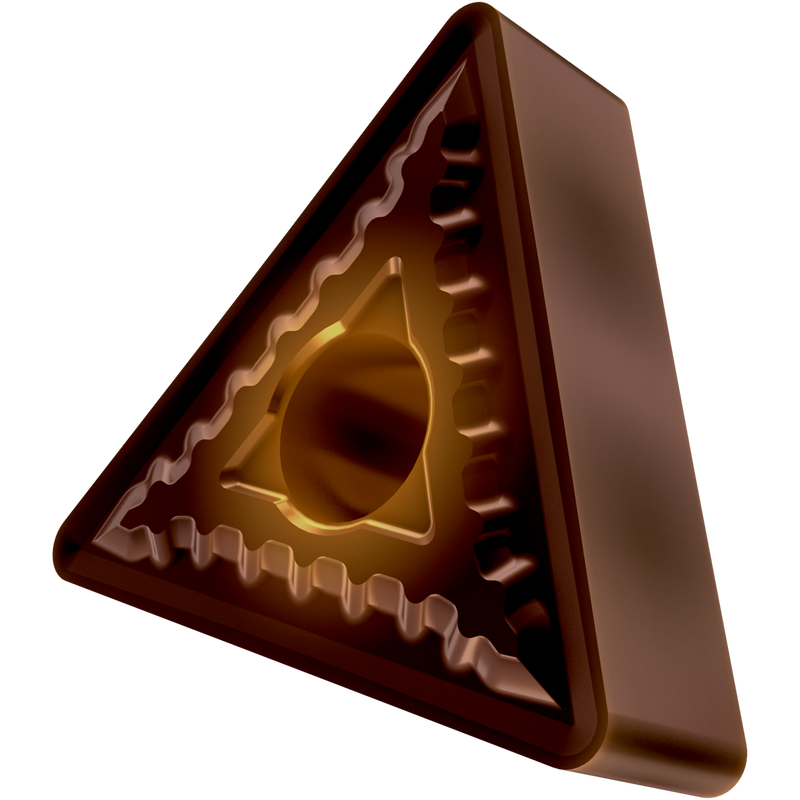

TNMG 433-SM:T8415
TNMG 433-SM:T8415

TNMG 433-SM:T8415

UGC DOR8553140
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.90 CAD - $15.90 CAD
$15.90 CAD
$15.90 CAD - $15.90 CAD
$15.90 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 0,5 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,047 pouce, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux SM avec arêtes de coupe arrondies, en qualité T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 433-SM:T8415
Product Name (ISO)TNMG 220412E-SM:T8415
GradeT8415
Chipbreaker (CBMD)SM
Product Number8553140
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number8553140
EAN3603604268868
File Type Download
TNMG 433-SM:T8415 — Line Drawing PDF Download
