VNMG 331-SF:T8415
VNMG 331-SF:T8415

VNMG 331-SF:T8415

UGC DOR8553143
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.79 CAD - $24.79 CAD
$24.79 CAD
$24.79 CAD - $24.79 CAD
$24.79 CAD

Vendu en lots de : 10

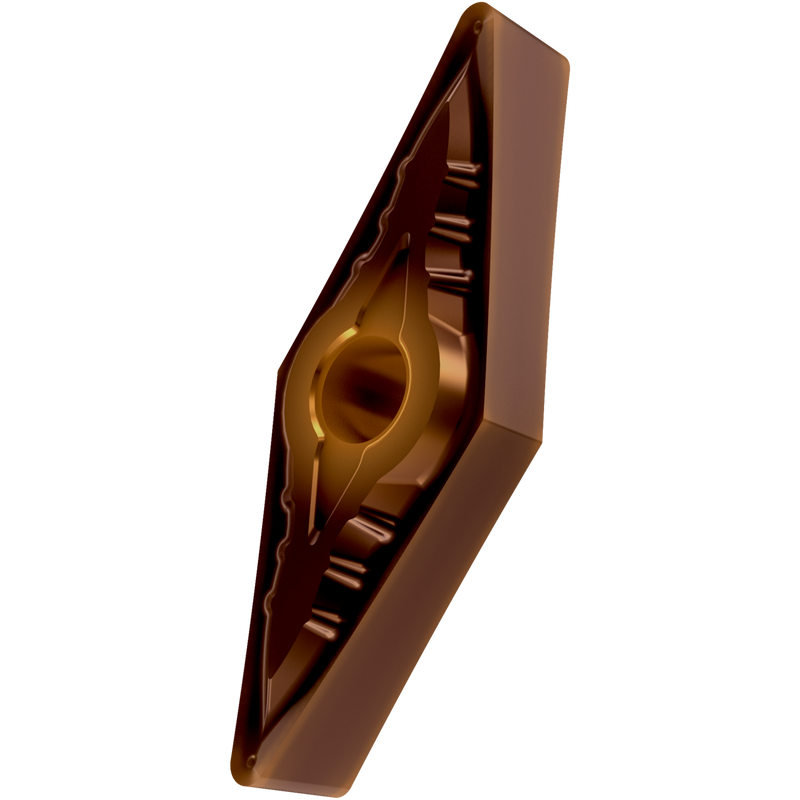

Plaquette négative double face, rhomboïde 35° avec un diamètre de cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, un rayon de pointe de 0,016 pouce, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux SF avec des arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 331-SF:T8415
Product Name (ISO)VNMG 160404E-SF:T8415
GradeT8415
Chipbreaker (CBMD)SF
Product Number8553143
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle interne de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553143
EAN3603604268899
File Type Download
VNMG 331-SF:T8415 — Line Drawing PDF Download
