VNMG 332-SF:T8415
VNMG 332-SF:T8415

VNMG 332-SF:T8415

UGC DOR8553146
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.79 CAD - $24.79 CAD
$24.79 CAD
$24.79 CAD - $24.79 CAD
$24.79 CAD

Vendu en lots de : 10

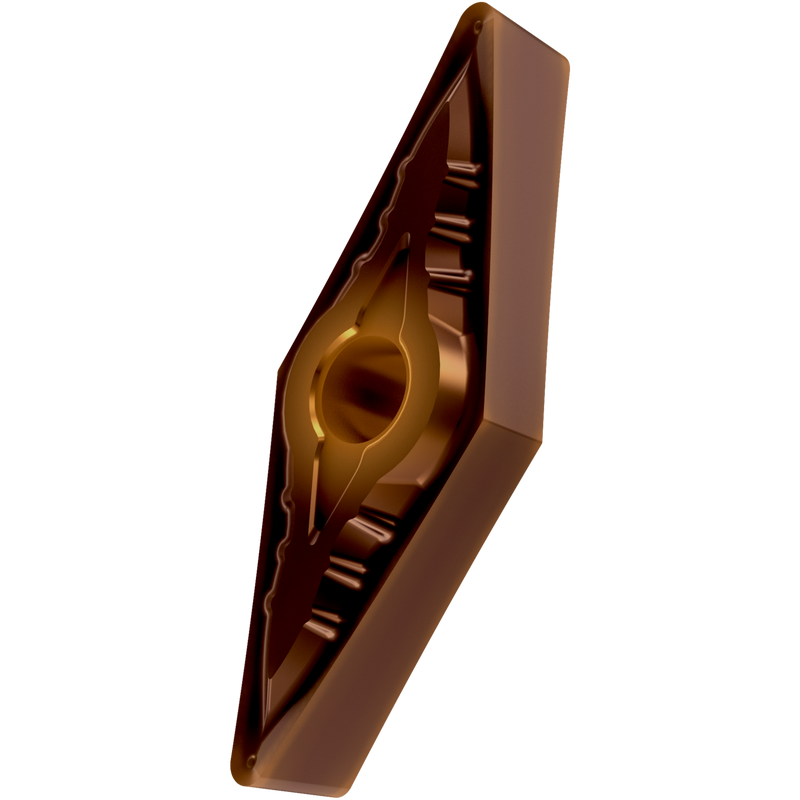

Plaquette double face négative, rhomboïde 35° avec un diamètre de cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux SF avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 332-SF:T8415
Product Name (ISO)VNMG 160408E-SF:T8415
GradeT8415
Chipbreaker (CBMD)SF
Product Number8553146
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle fermé de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553146
EAN3603604268929
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
VNMG 332-SF:T8415 — Line Drawing PDF Download
