WNMG 330.5-FF:T8415
WNMG 330.5-FF:T8415

WNMG 330.5-FF:T8415

UGC DOR8553150
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.33 CAD - $12.33 CAD
$12.33 CAD
$12.33 CAD - $12.33 CAD
$12.33 CAD

Vendu en lots de : 10

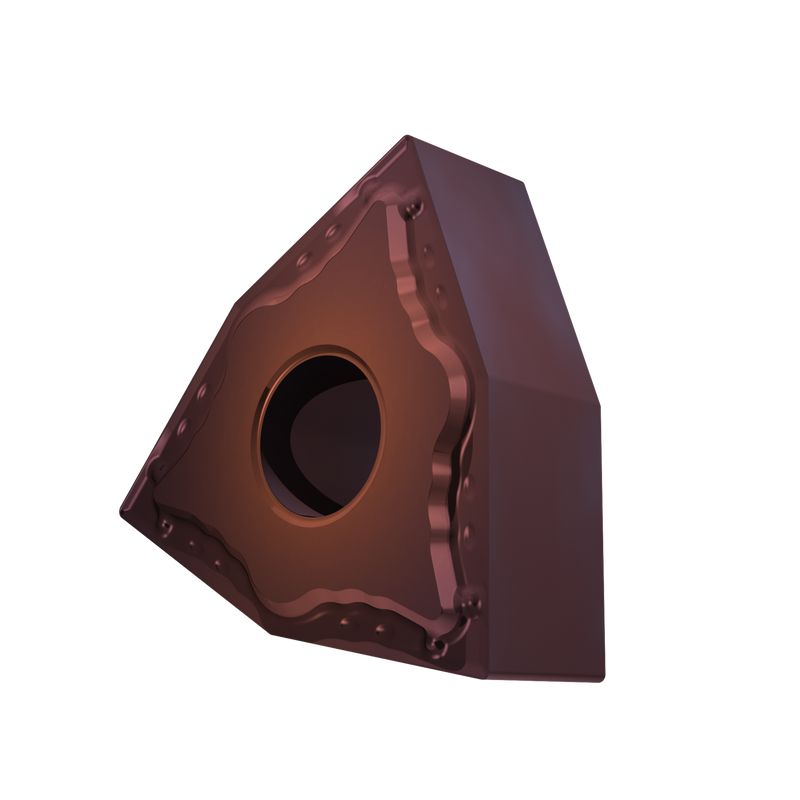

Plaquette de tournage négative double face, trigon 80° avec un diamètre de cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, un rayon de bec de 0,008 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FF avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 330.5-FF:T8415
Product Name (ISO)WNMG 060402E-FF:T8415
GradeT8415
Chipbreaker (CBMD)FF
Product Number8553150
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number8553150
EAN3603604268967
File Type Download
WNMG 330.5-FF:T8415 — Line Drawing PDF Download
