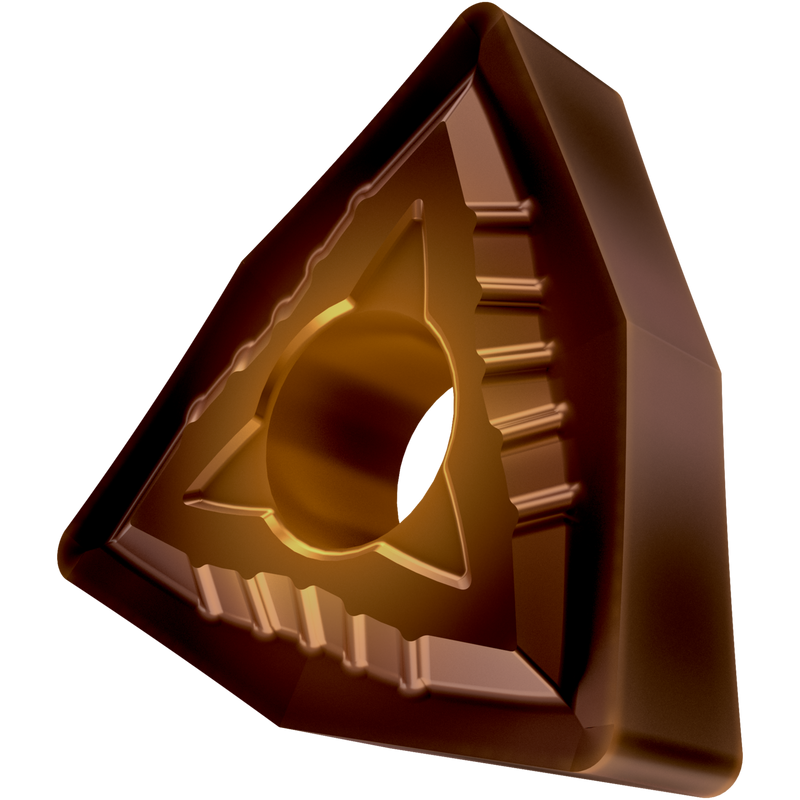

WNMG 331-SF:T8415
WNMG 331-SF:T8415

WNMG 331-SF:T8415

UGC DOR8553153
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.33 CAD - $12.33 CAD
$12.33 CAD
$12.33 CAD - $12.33 CAD
$12.33 CAD

Vendu en lots de : 10

Plaquette négative double face à 80°, trigonale avec un diamètre de cercle inscrit de 0,375 pouce, 0,187 pouce d'épaisseur, rayon de bec de 0,016 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SF avec arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 331-SF:T8415
Product Name (ISO)WNMG 060404E-SF:T8415
GradeT8415
Chipbreaker (CBMD)SF
Product Number8553153
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553153
EAN3603604268998
File Type Download
WNMG 331-SF:T8415 — Line Drawing PDF Download
